ECM Terminal Id
ECM Terminal Id

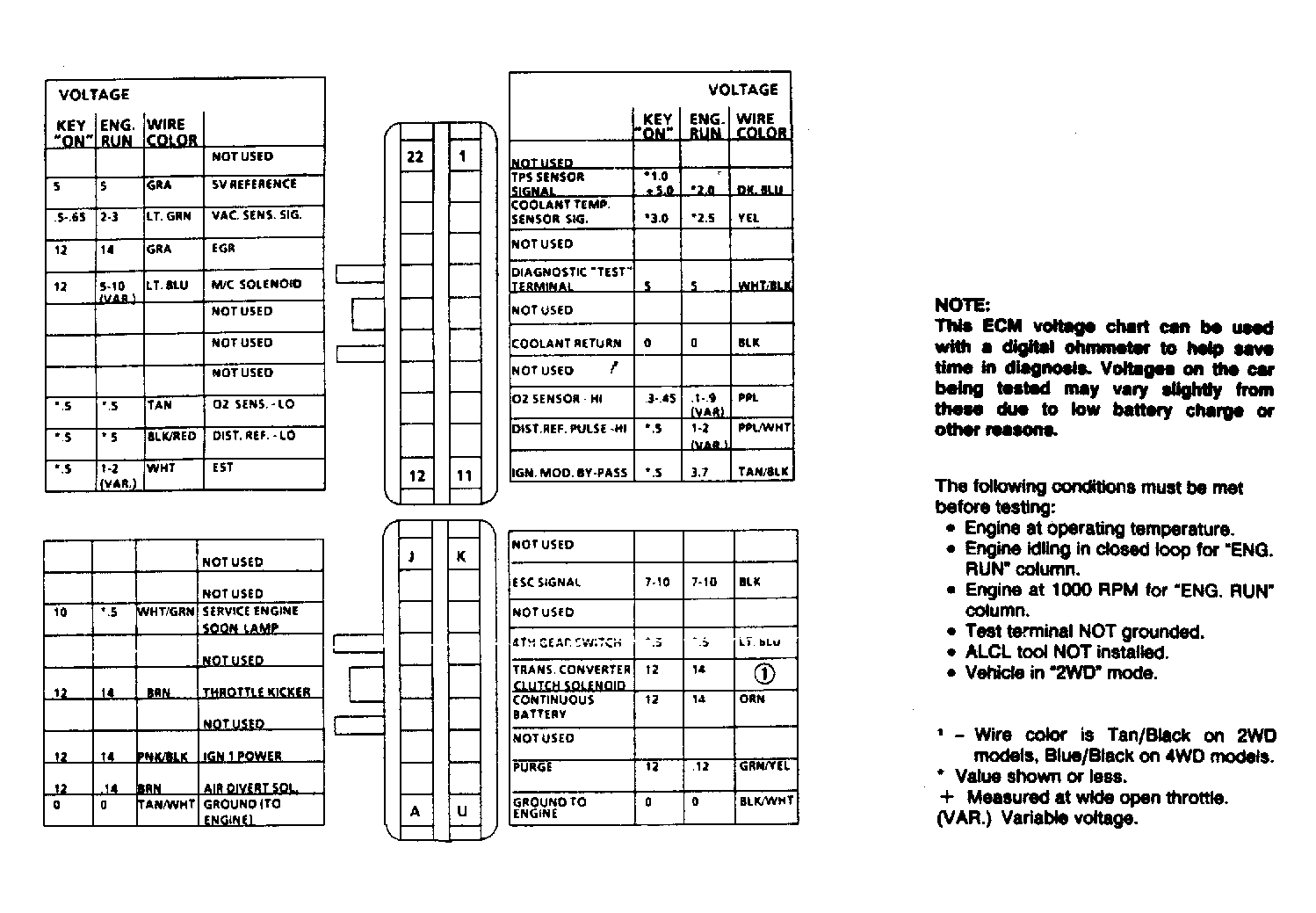

Fig 1: ECM Terminal ID & Voltage Values (4.3L Carbureted Engine)

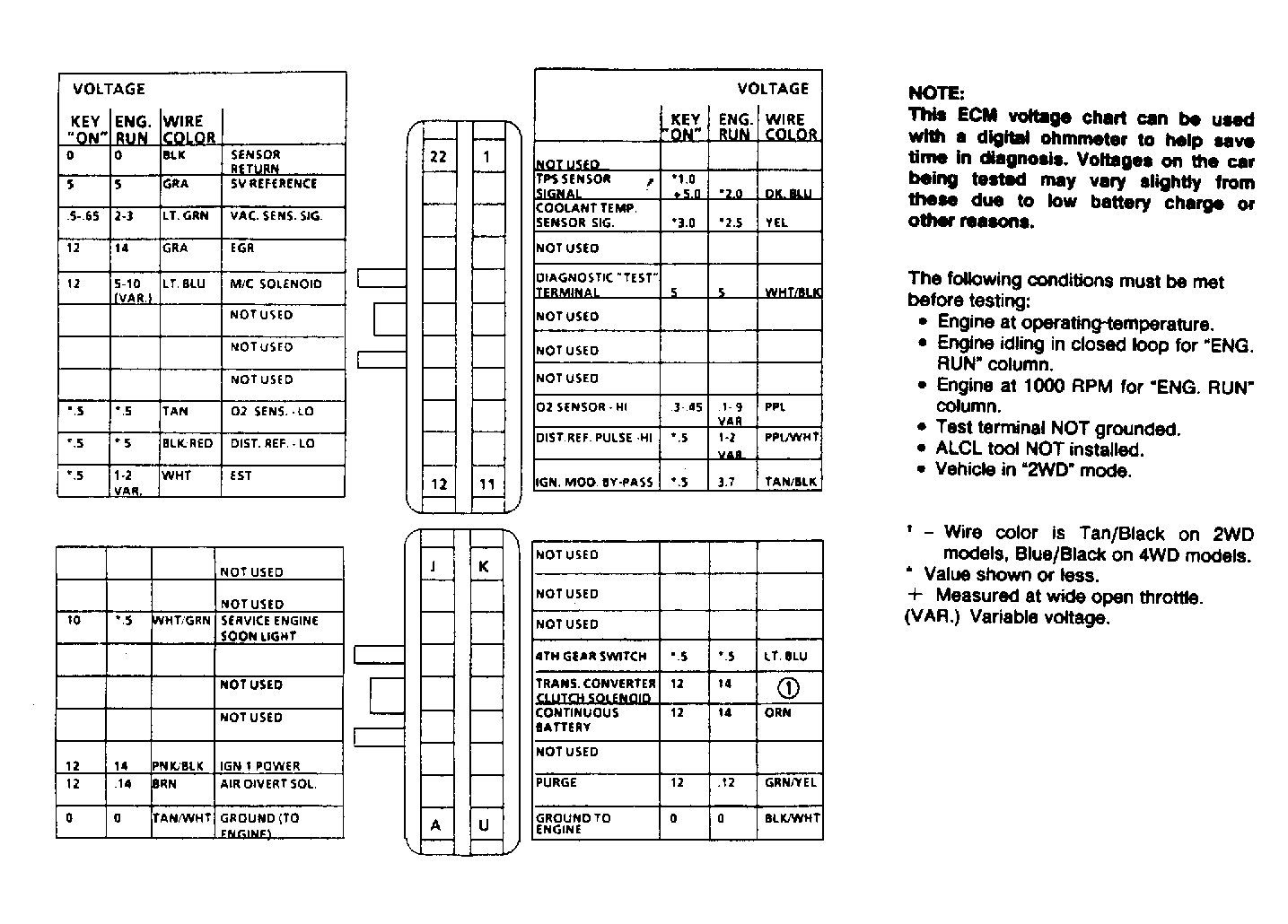

Fig 2: ECM Terminal ID & Voltage Values (5.0L & 5.7L Engines)
