Window Motor

Check power feed to motor terminals. If power is available, check motor ground. Inspect window regulator and channels for possible binding. Connect a jumper wire to other motor terminal. Motor should operate window up and down. If not, replace motor.

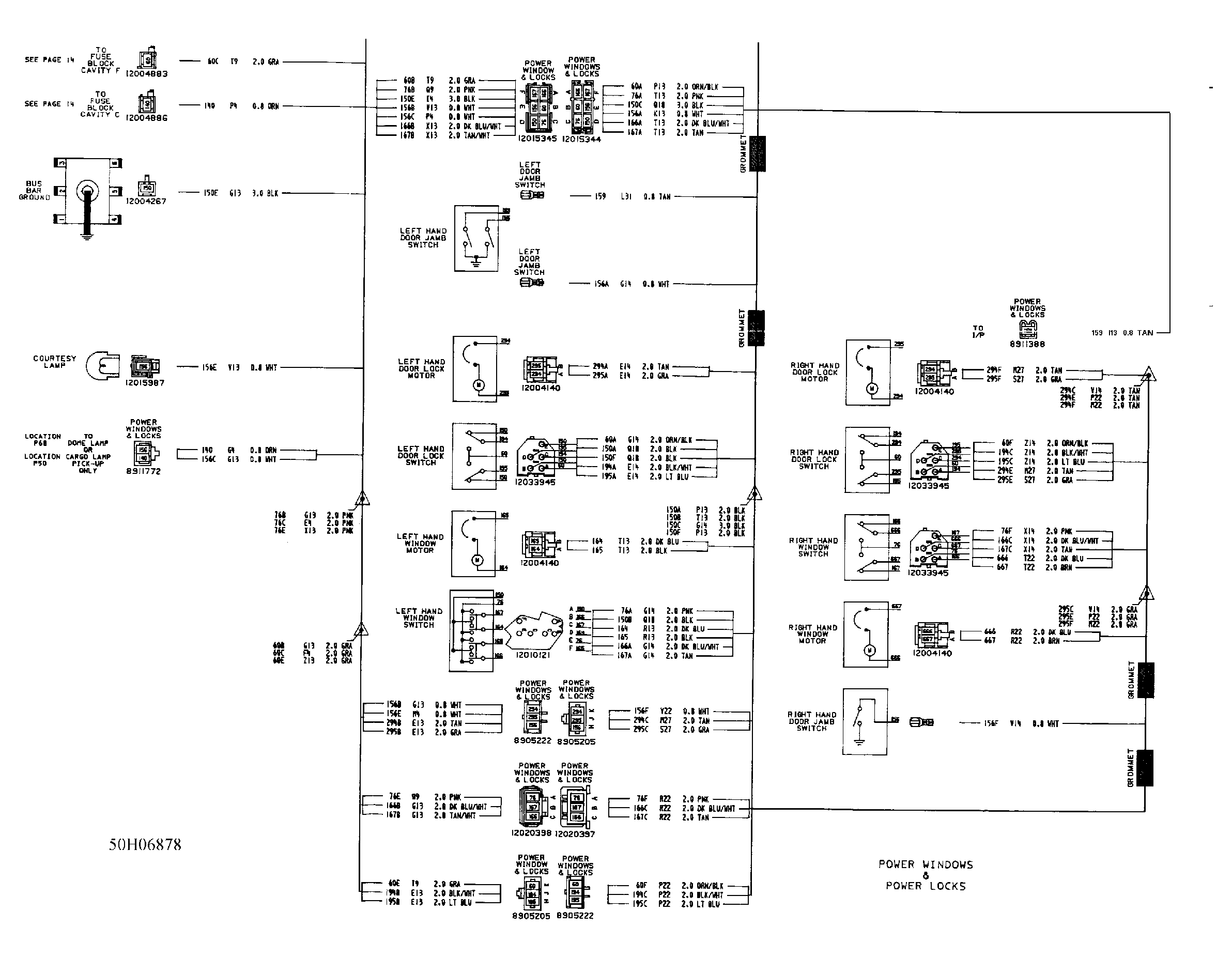

Fig 1: Power Window Wiring Diagram (Exc. S & T Series) Two-door is shown. Others are similar.

Fig 2: Power Door Lock Wiring Diagram (S & T Series)
