LEMON Manuals
: Even more car manuals for everyone
Home
>>
GMC
>>
1985
>>
Value Van P2500, 6.2 J, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
4.3L/5.0L/5.7L Tests W/Codes
>>
EGR Valve Check Non-ECM Controlled
EGR Valve Check Non-ECM Controlled

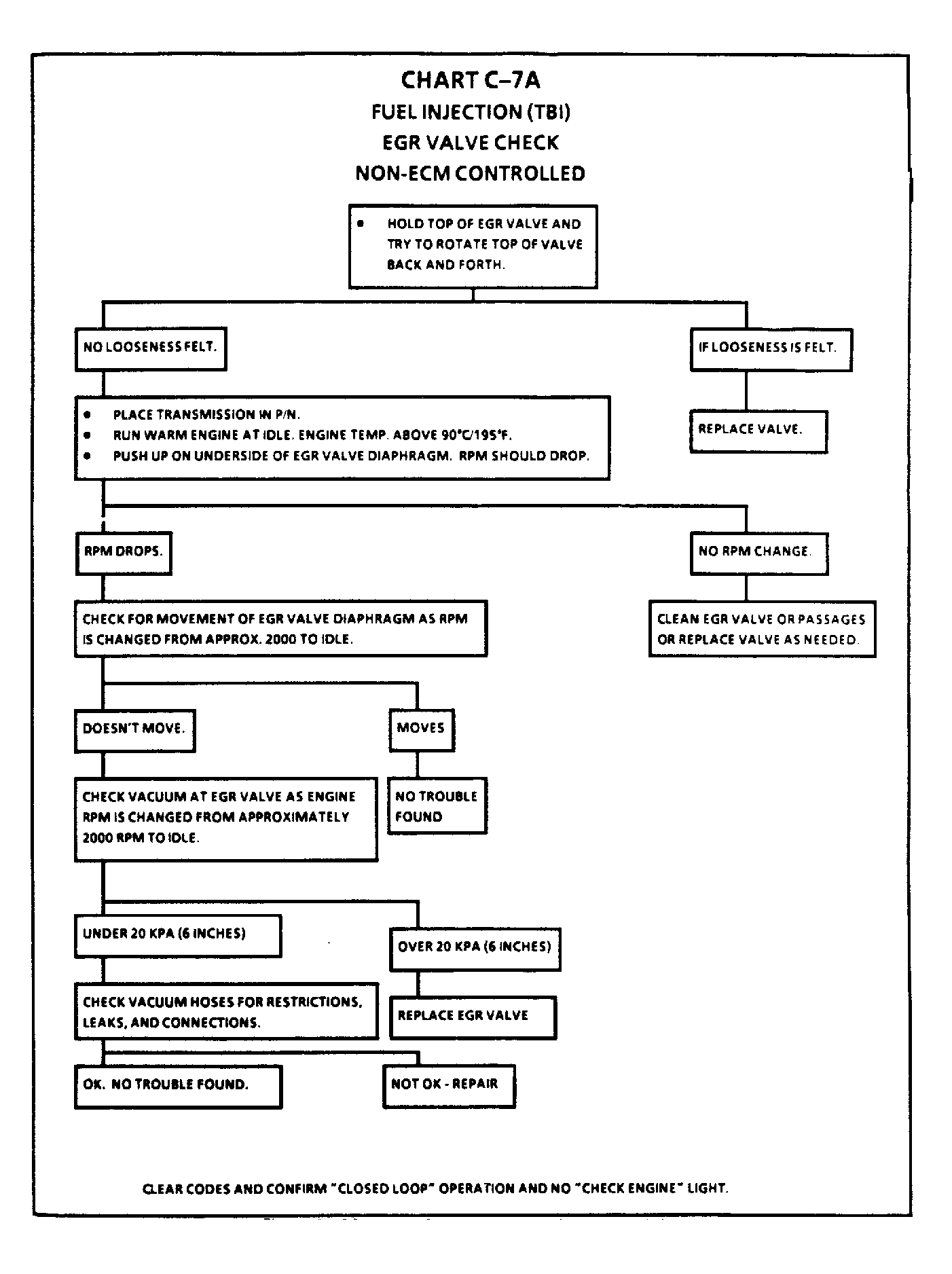

Fig 1: EGR Valve Check Non-ECM Controlled
