ECM Terminal Id

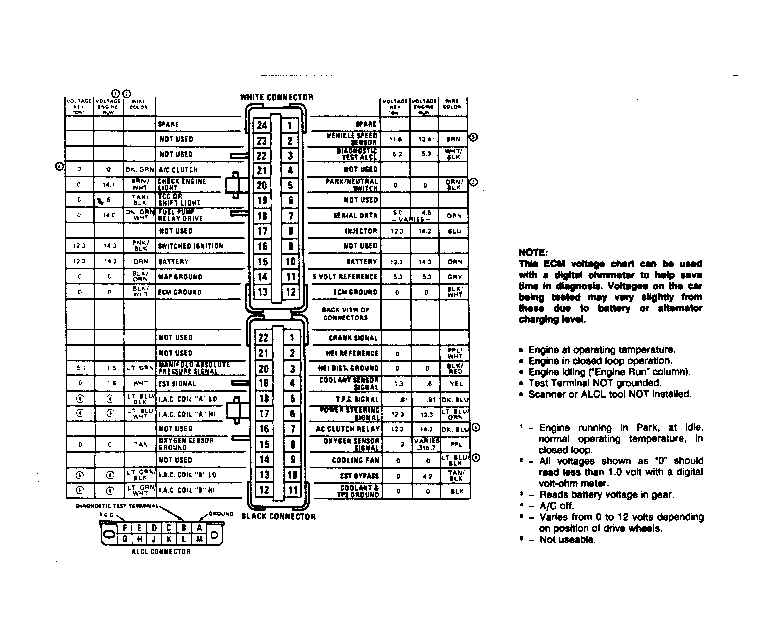

Fig 1: ECM Terminal Identification & Voltage Values for 2.5L Engine
G10212

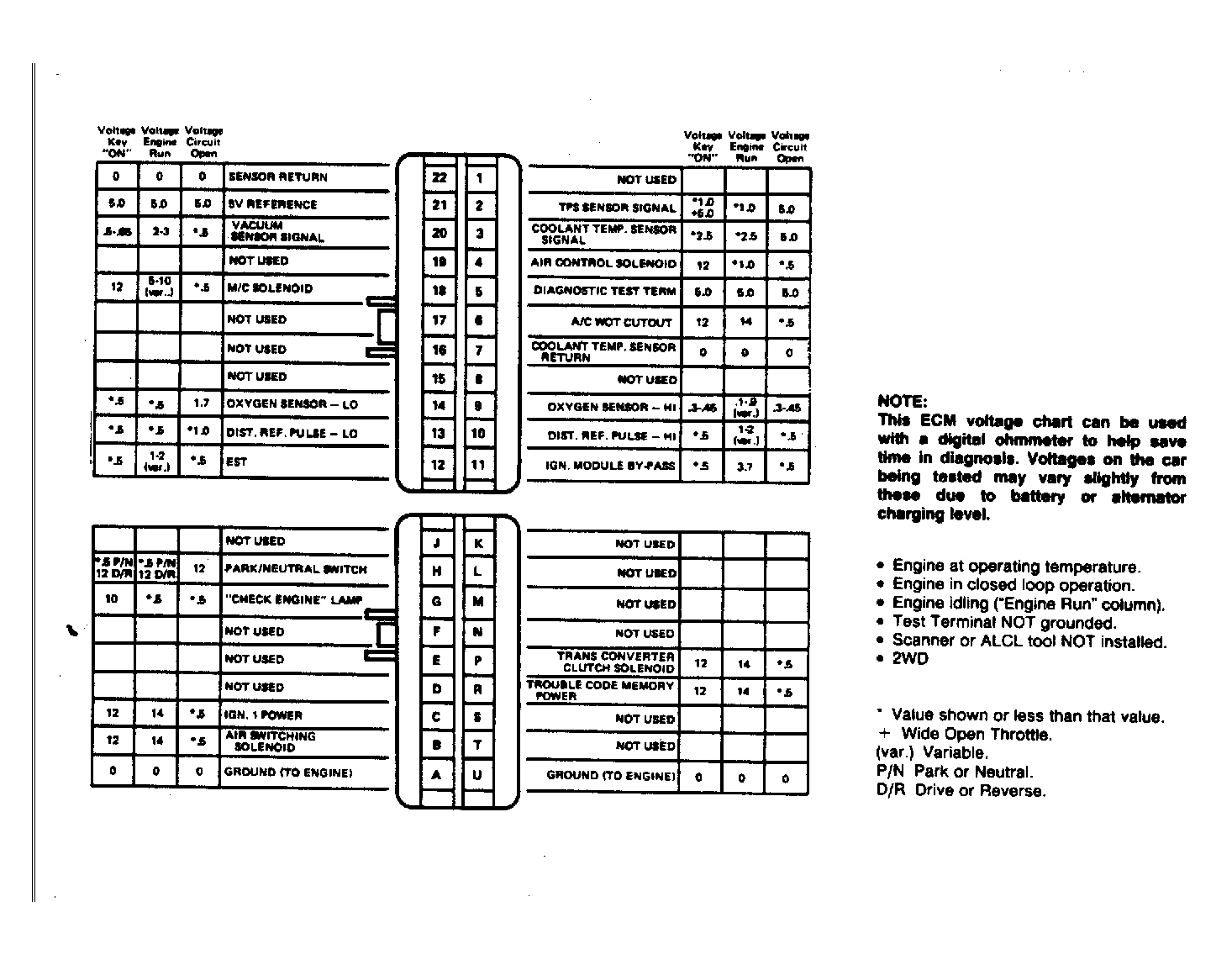

Fig 2: ECM Terminal Identification & Voltage Values for 2.8L Engine
G10213

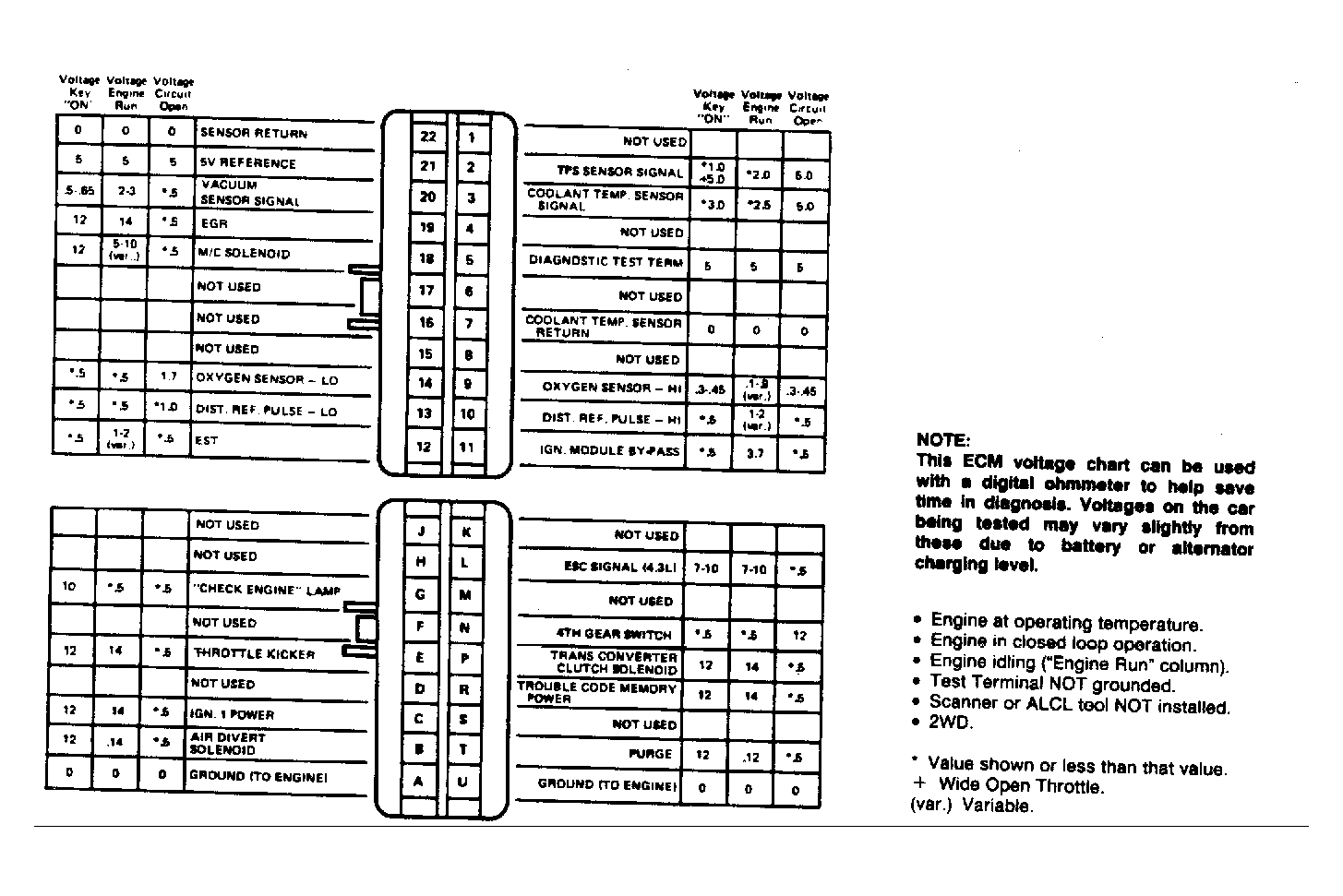

Fig 3: ECM Terminal Identification & Voltage Values for 4.3L Engine
G10214

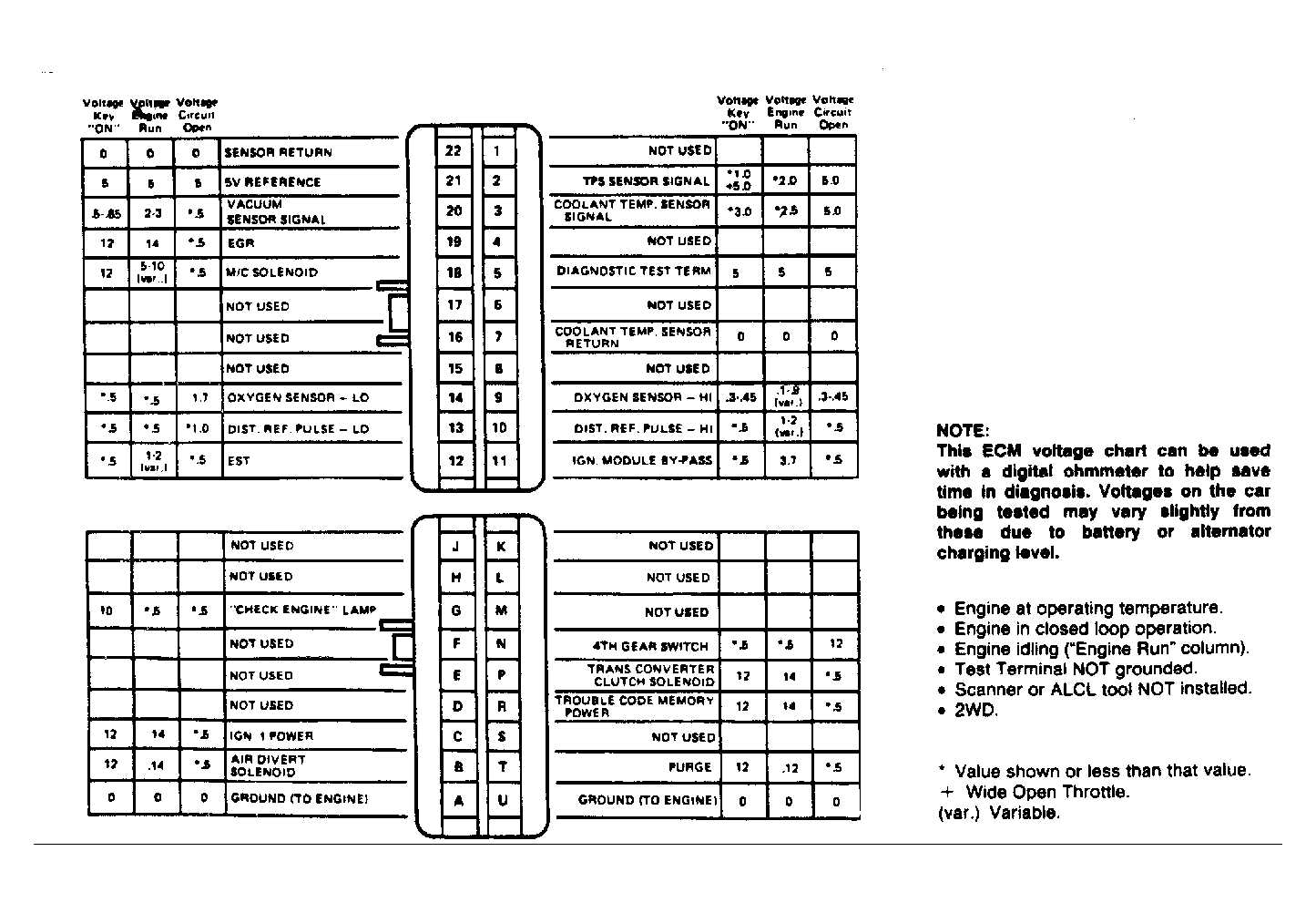

Fig 4: ECM Terminal Identification & Voltage Values for 5.0L & 5.7L Engines
G10215
