End Play Check

Install Torque Converter End Play Checker (J-21371). See Fig 1. Converter end clearance should be less than .024" (.60 mm). If clearance is greater than specification, replace torque converter assembly.

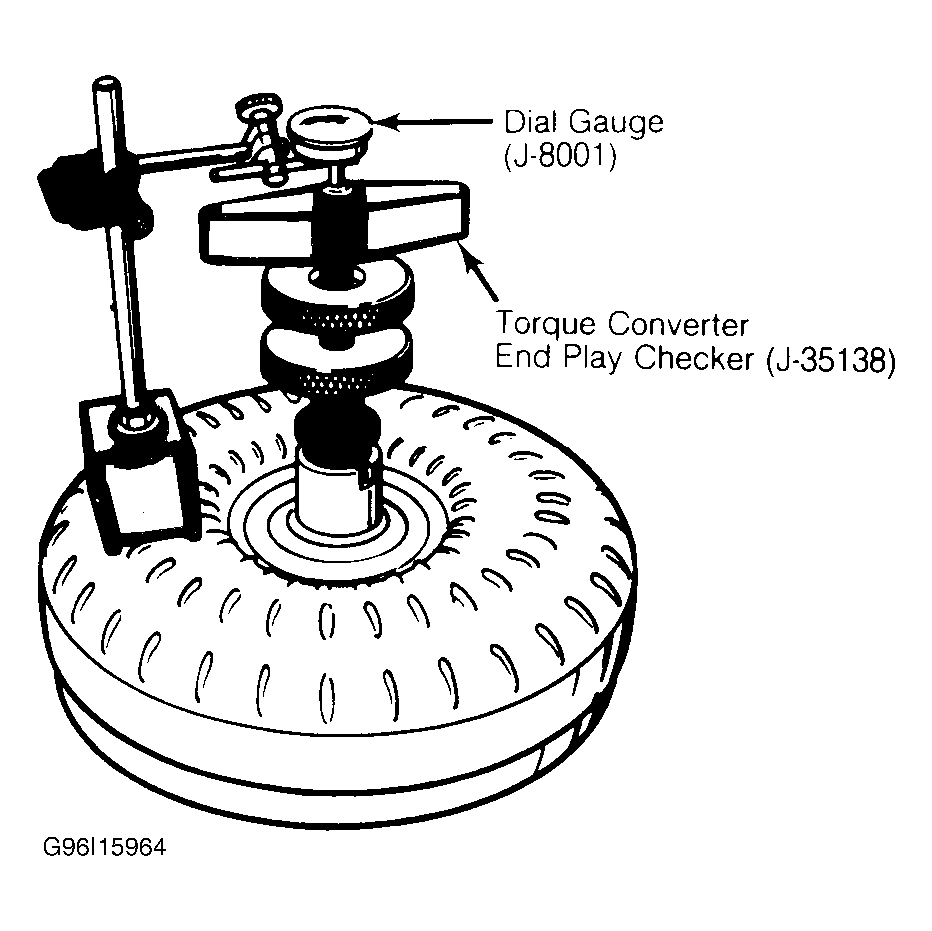

Fig 1: Checking Torque Converter End Play

Courtesy of GENERAL MOTORS CORP.
