Code 45, Oxygen Sensor (Rich Indication)

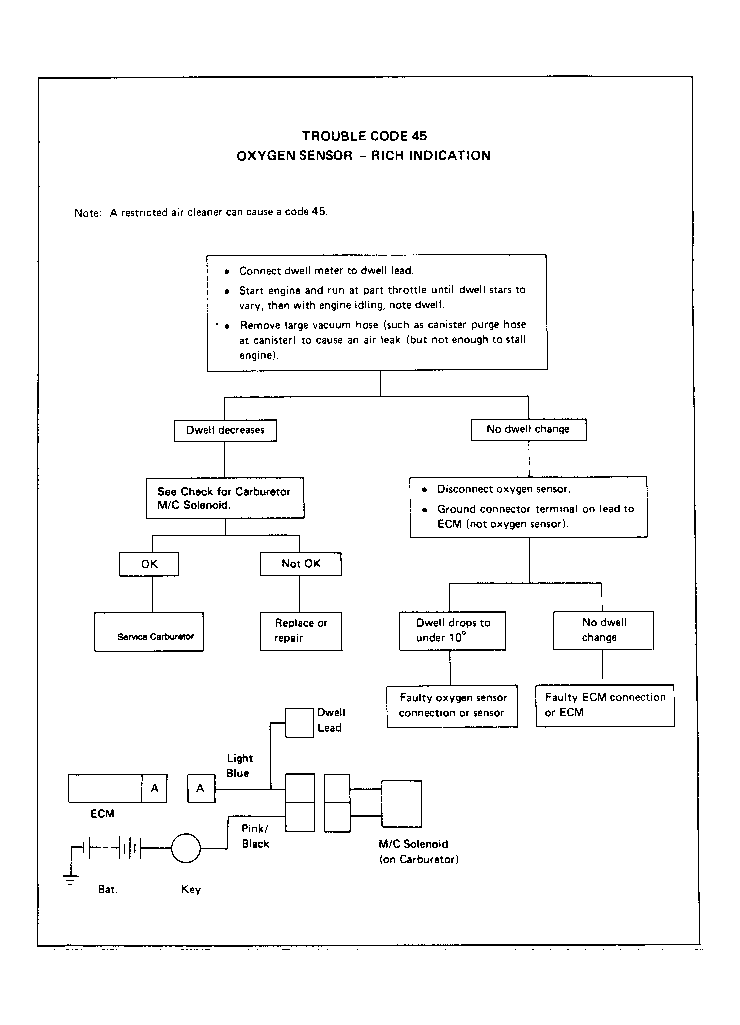

Fig 1: Code 45, Oxygen Sensor (Rich Indication)

G9424

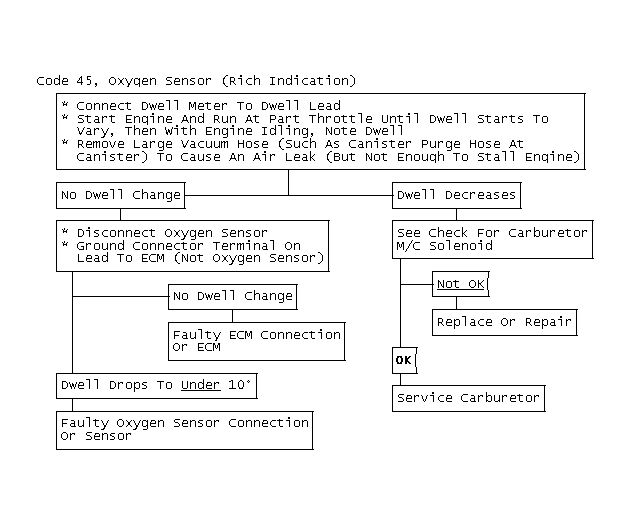

Fig 2: Code 45, Oxygen Sensor (Rich Indication)

GB0020815
