Code 44, Oxygen Sensor (Lean Indication)

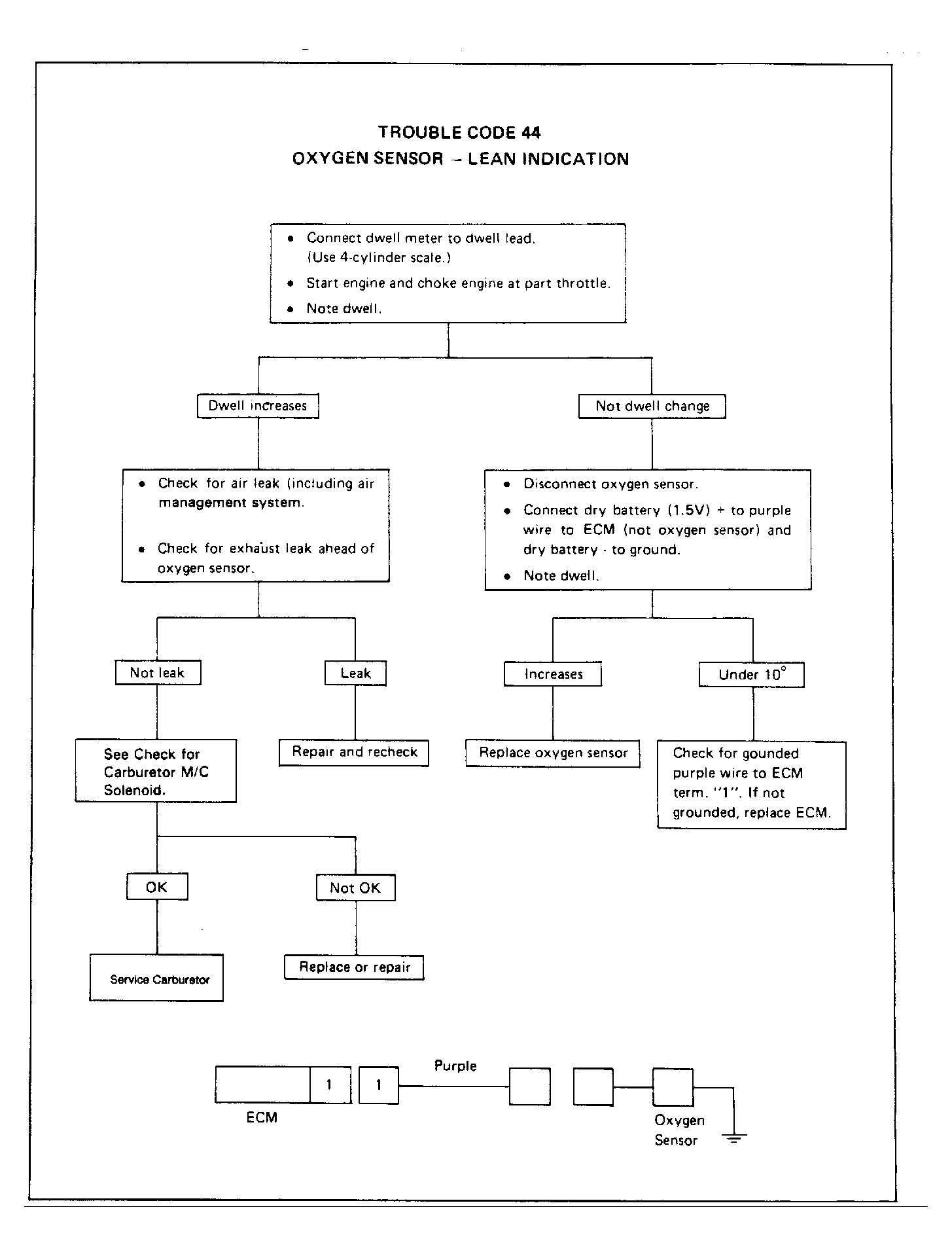

Fig 1: Code 44, Oxygen Sensor (Lean Indication)

G9423

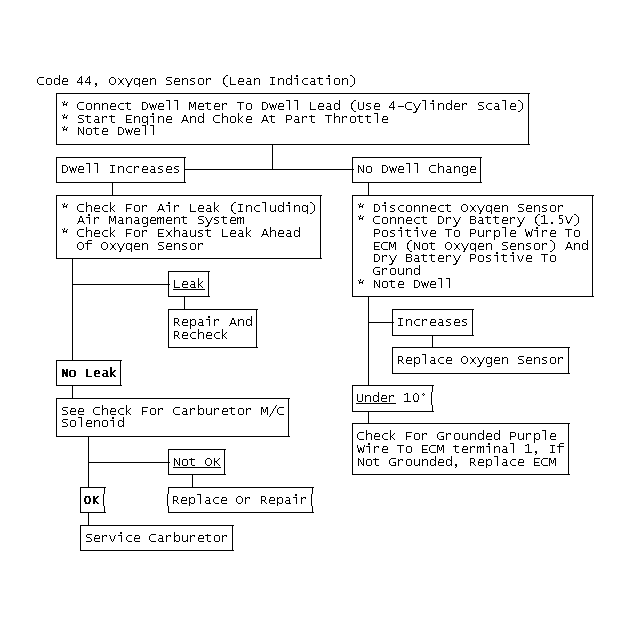

Fig 2: Code 44, Oxygen Sensor (Lean Indication)

GB0020814
