Code 23, Mixture Control Solenoid, CKT Open Or Grounded

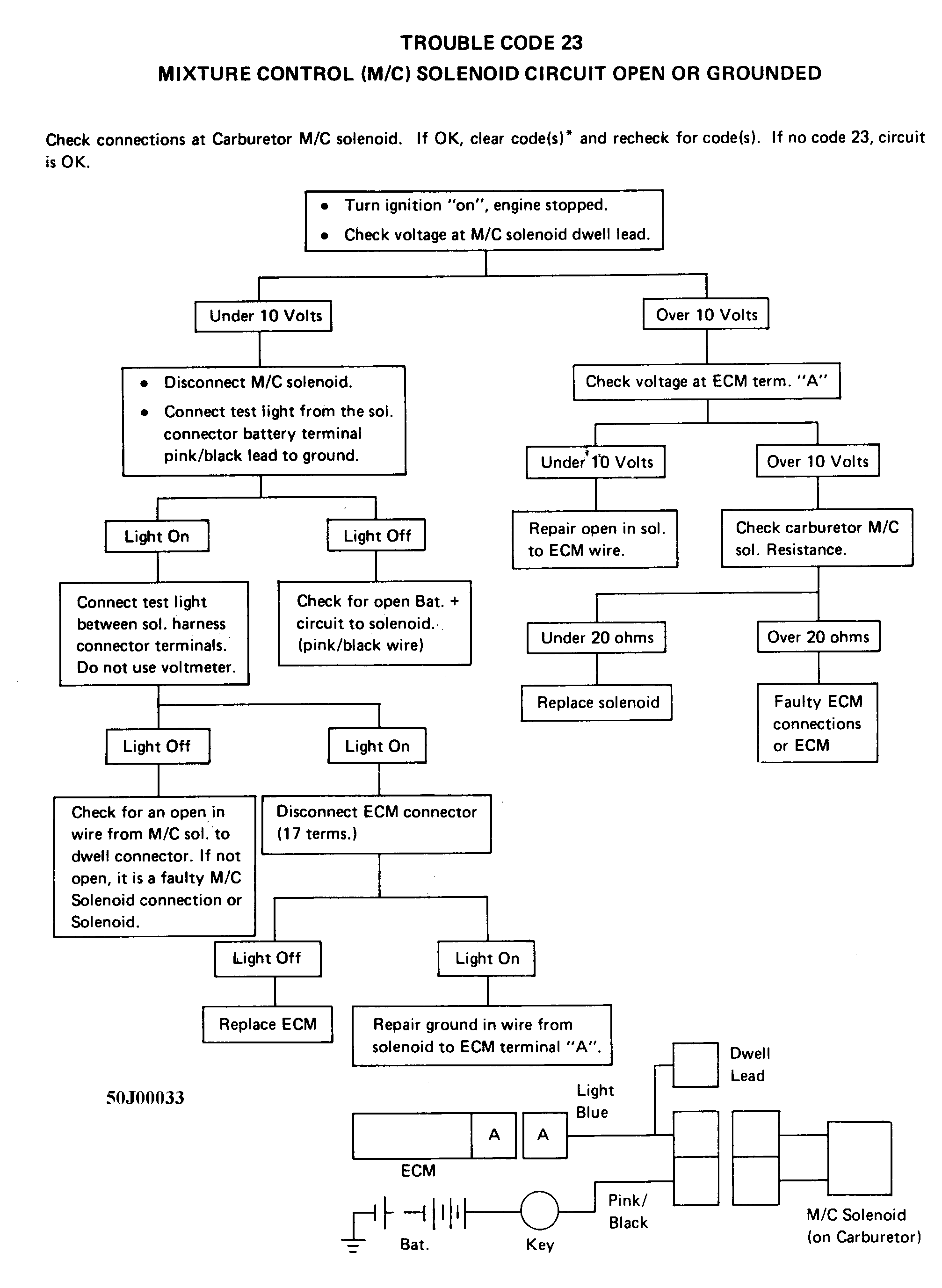

Fig 1: Code 23, Mixture Control Solenoid, Ckt Open or Grounded

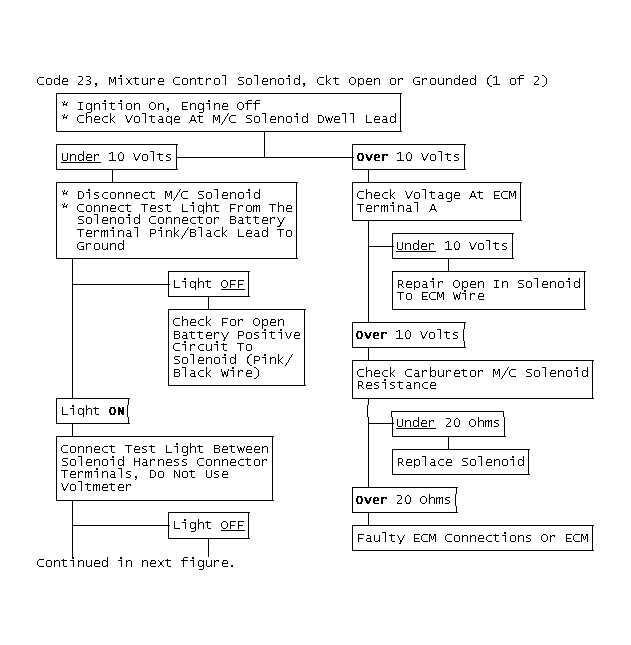

Fig 2: Code 23, Mixture Control Solenoid, Ckt Open or Grounded (1 of 2)

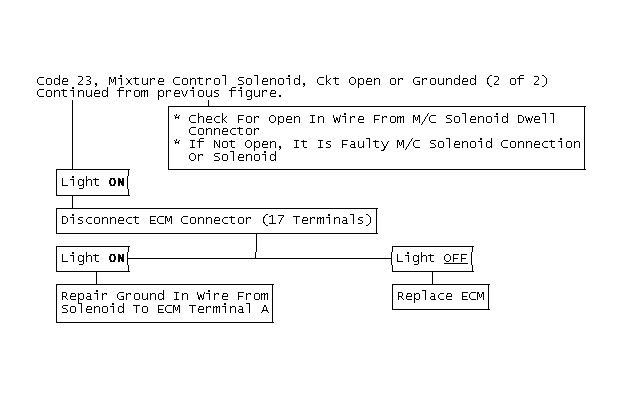

Fig 3: Code 23, Mixture Control Solenoid, Ckt Open or Grounded (2 of 2)
