S15 Jimmy 2.8 B, RWD, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
1.9L CEC Tests W/Codes
>>
Description
>>
Code 21, Idle Switch CKT Open Or Wot Switch CKT Shorted
Code 21, Idle Switch CKT Open Or Wot Switch CKT Shorted

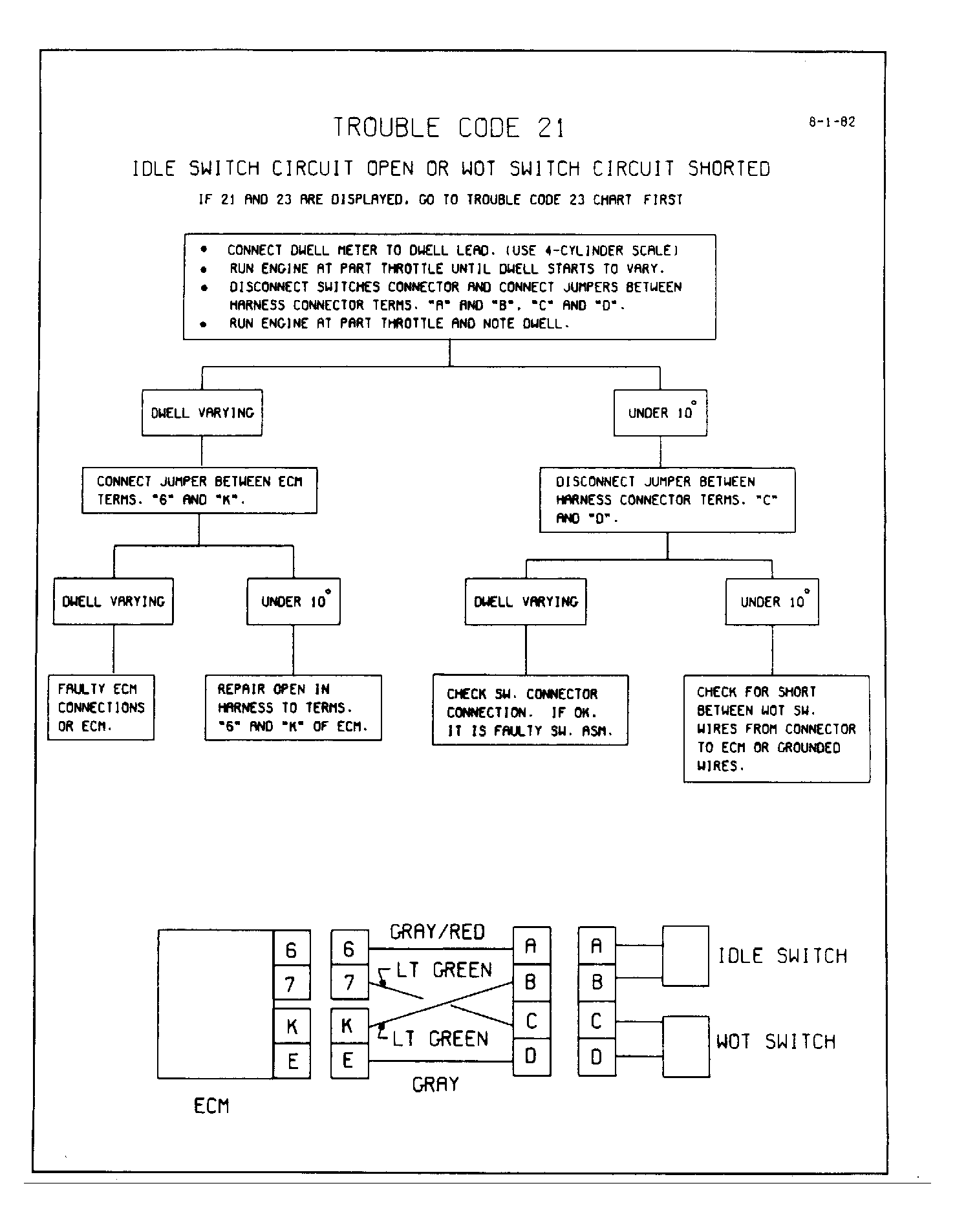

Fig 1: Code 21, Idle Switch Ckt Open or WOT Switch Ckt Shorted

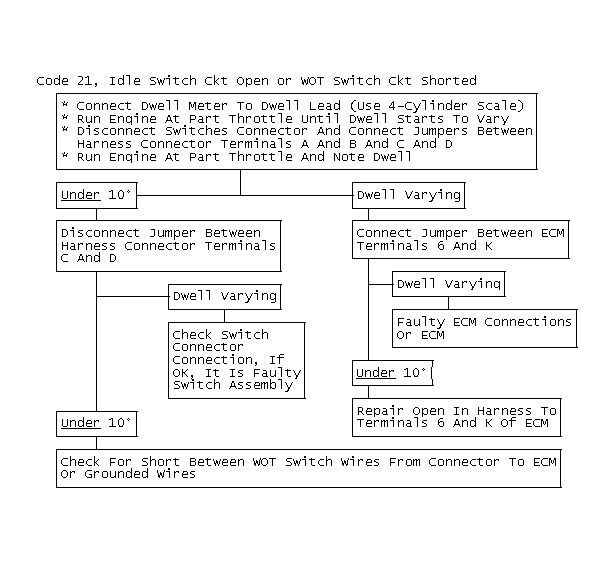

Fig 2: Code 21, Idle Switch Ckt Open or WOT Switch Ckt Shorted
