Chart No. 6, Won't Flash Code 12

Fig 1: Flow Chart No. 6, Won't Flash Code 12

G8460

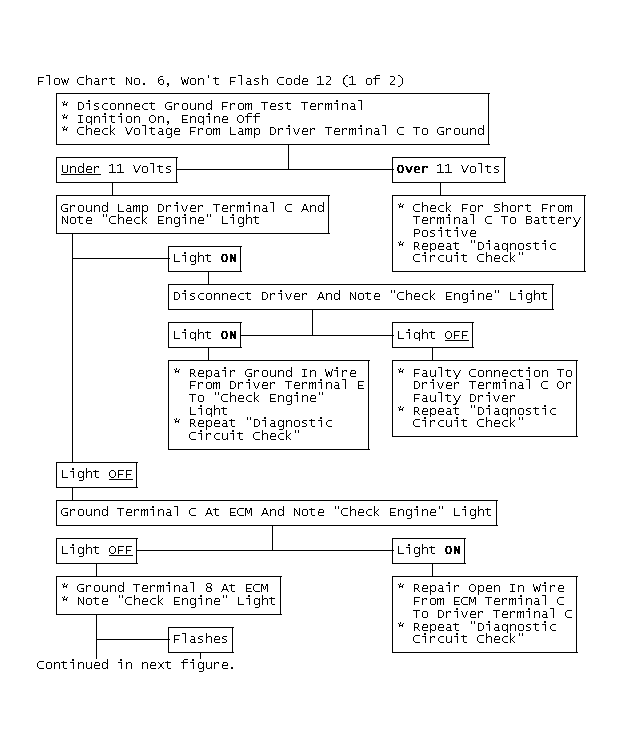

Fig 2: Flow Chart No. 6, Won't Flash Code 12 (1 of 2)

GB0020801

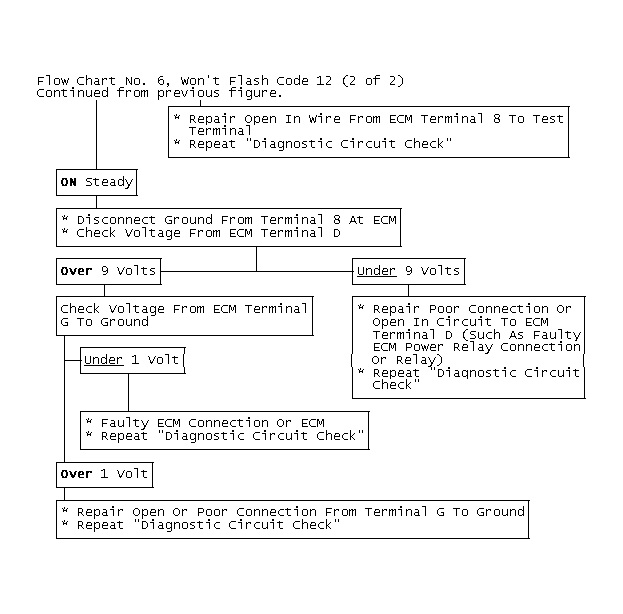

Fig 3: Flow Chart No. 6, Won't Flash Code 12 (2 of 2)

GB0020802
