Home >> GMC >> 1984 >> S15 Jimmy 2.8 B, 4WD, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> 1.9L CEC Tests W/Codes >> Description >> Code 31, No Reference Signal

Code 31, No Reference Signal

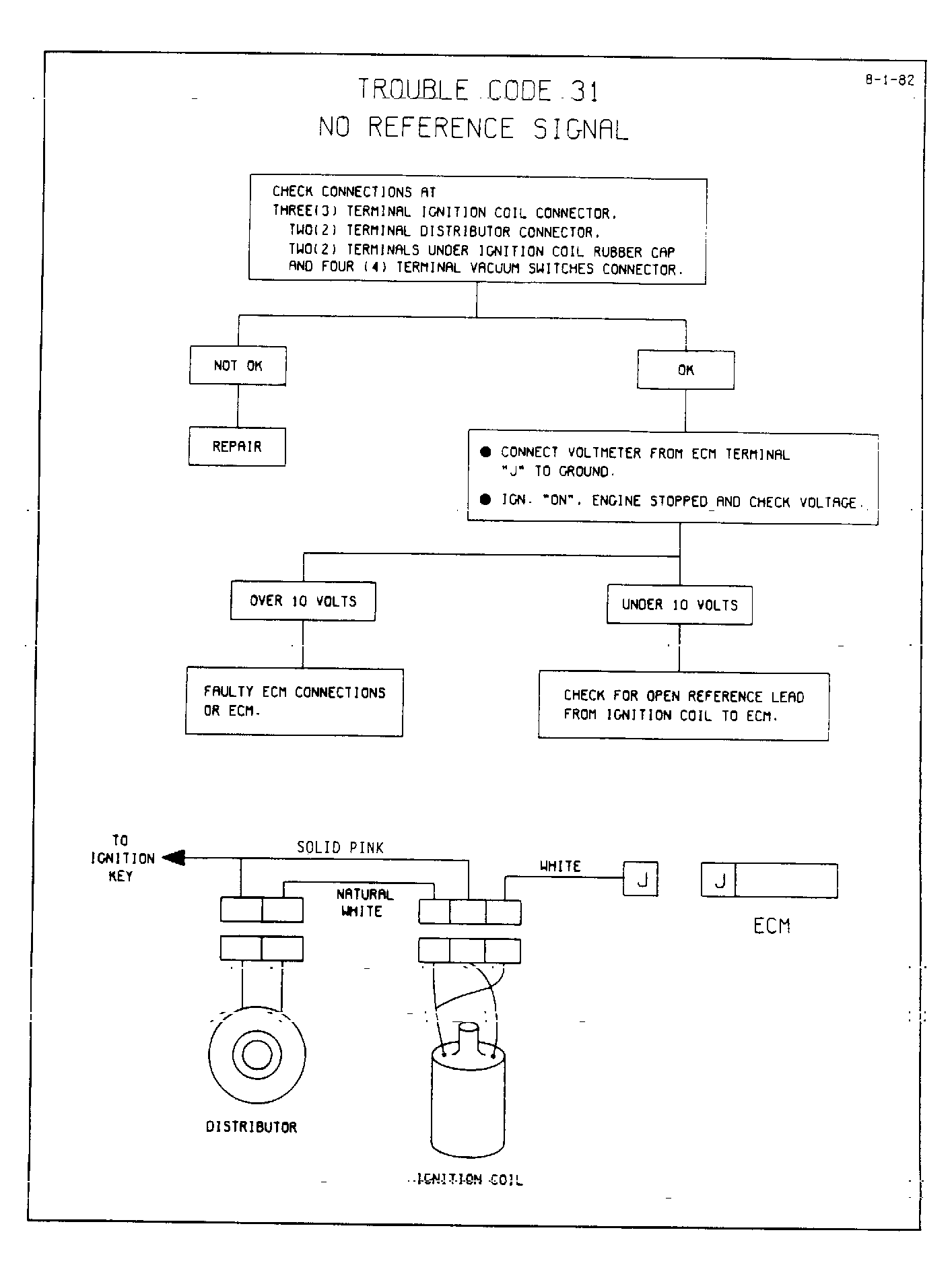

Fig 1: Code 31, No Reference Signal

G9422

Fig 2: Code 31, No Reference Signal

GB0020813
