Code 15, Open Coolant Sensor Circuit

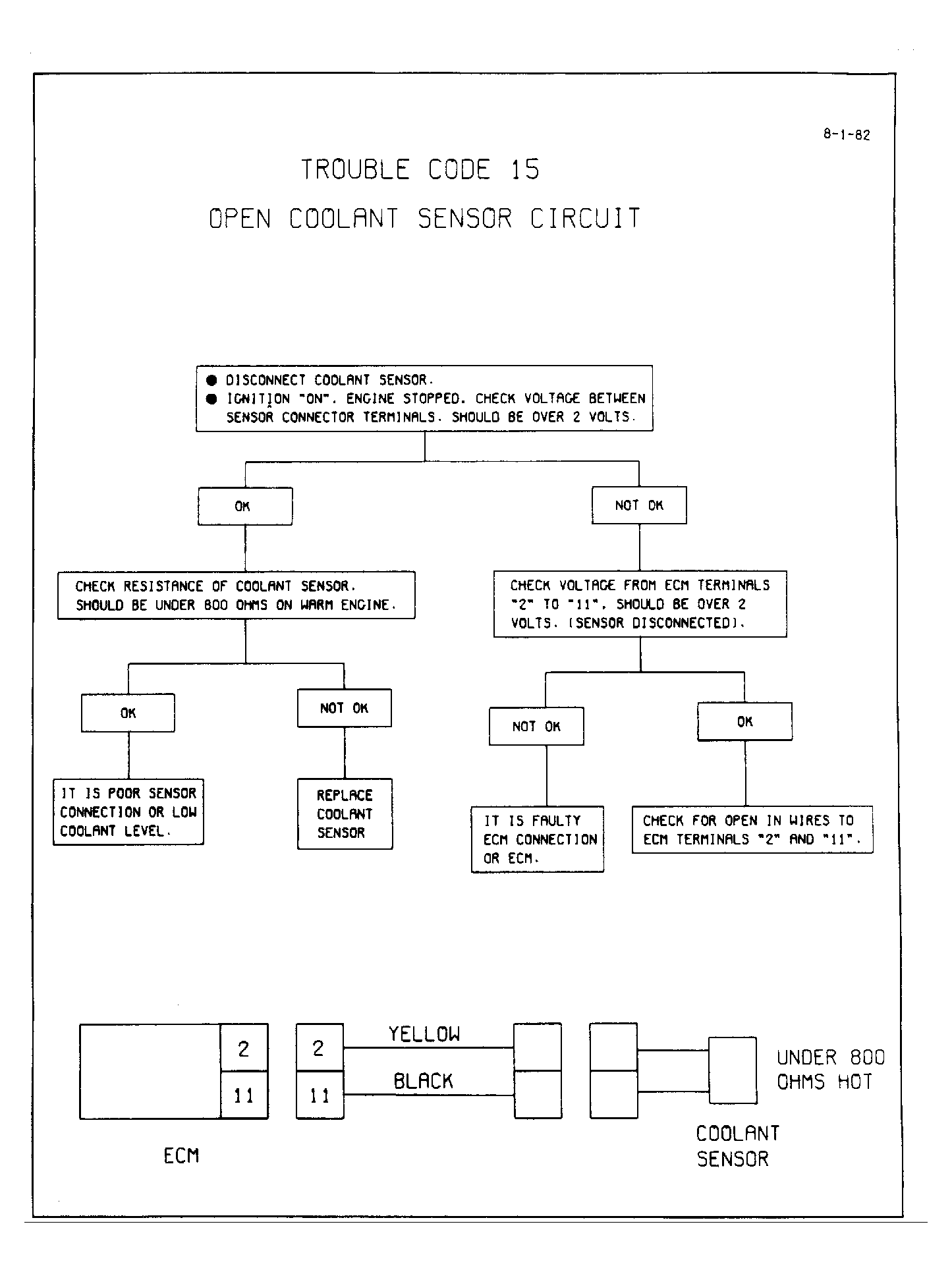

Fig 1: Code 15, Open Coolant Sensor Circuit

G9417

Fig 2: Code 15, Open Coolant Sensor Circuit

GB0020806
