Home >> GMC >> 1984 >> S15 Jimmy 2.8 B, 4WD, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> 1.9L CEC Tests W/Codes >> Description >> Code 14, Shorted Coolant Sensor Circuit

Code 14, Shorted Coolant Sensor Circuit

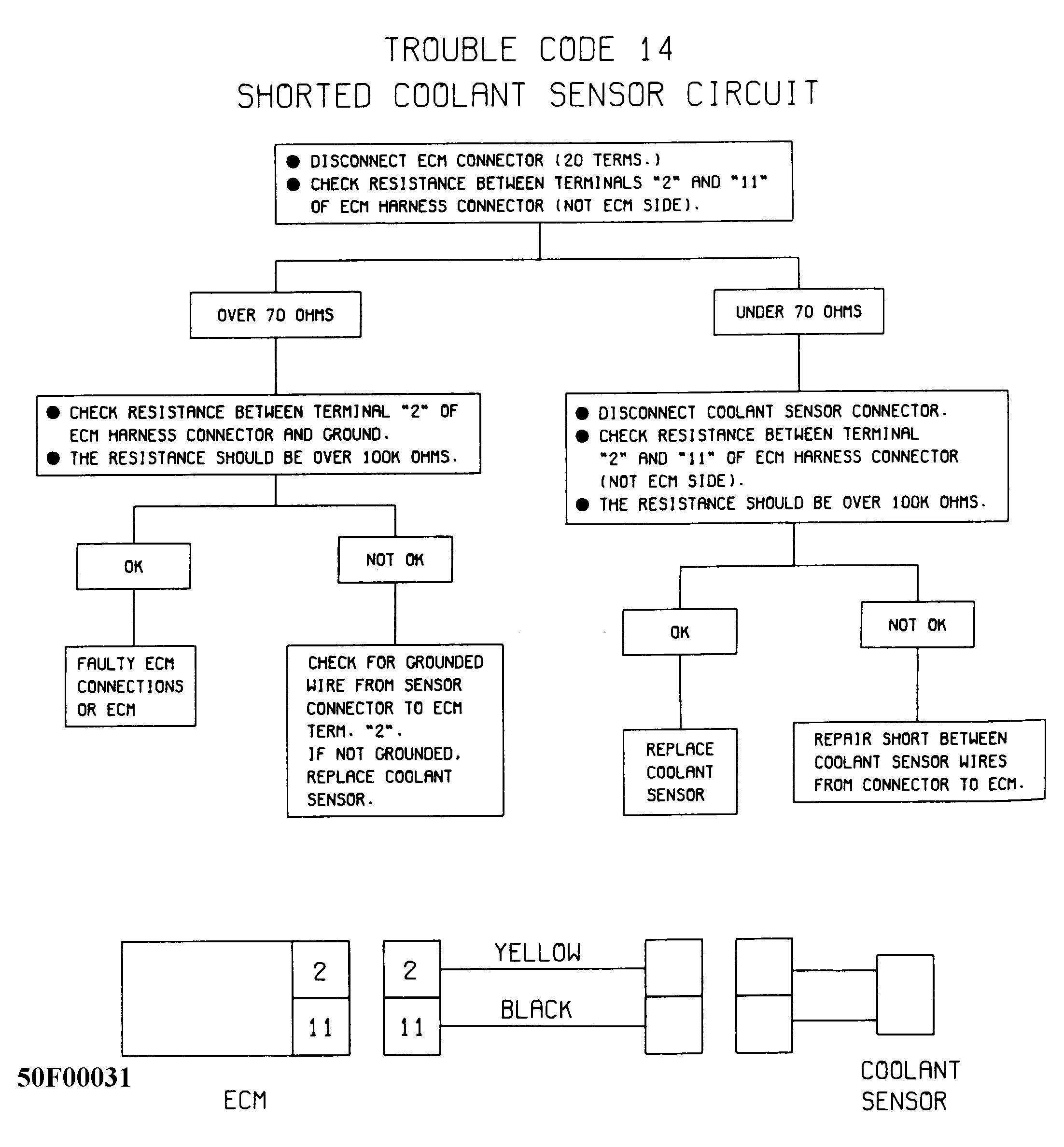

Fig 1: Code 14, Shorted Coolant Sensor Circuit

G50F00031

Fig 2: Code 14, Shorted Coolant Sensor Circuit

GB0020805
