Code 12, No Reference Pulses To ECM

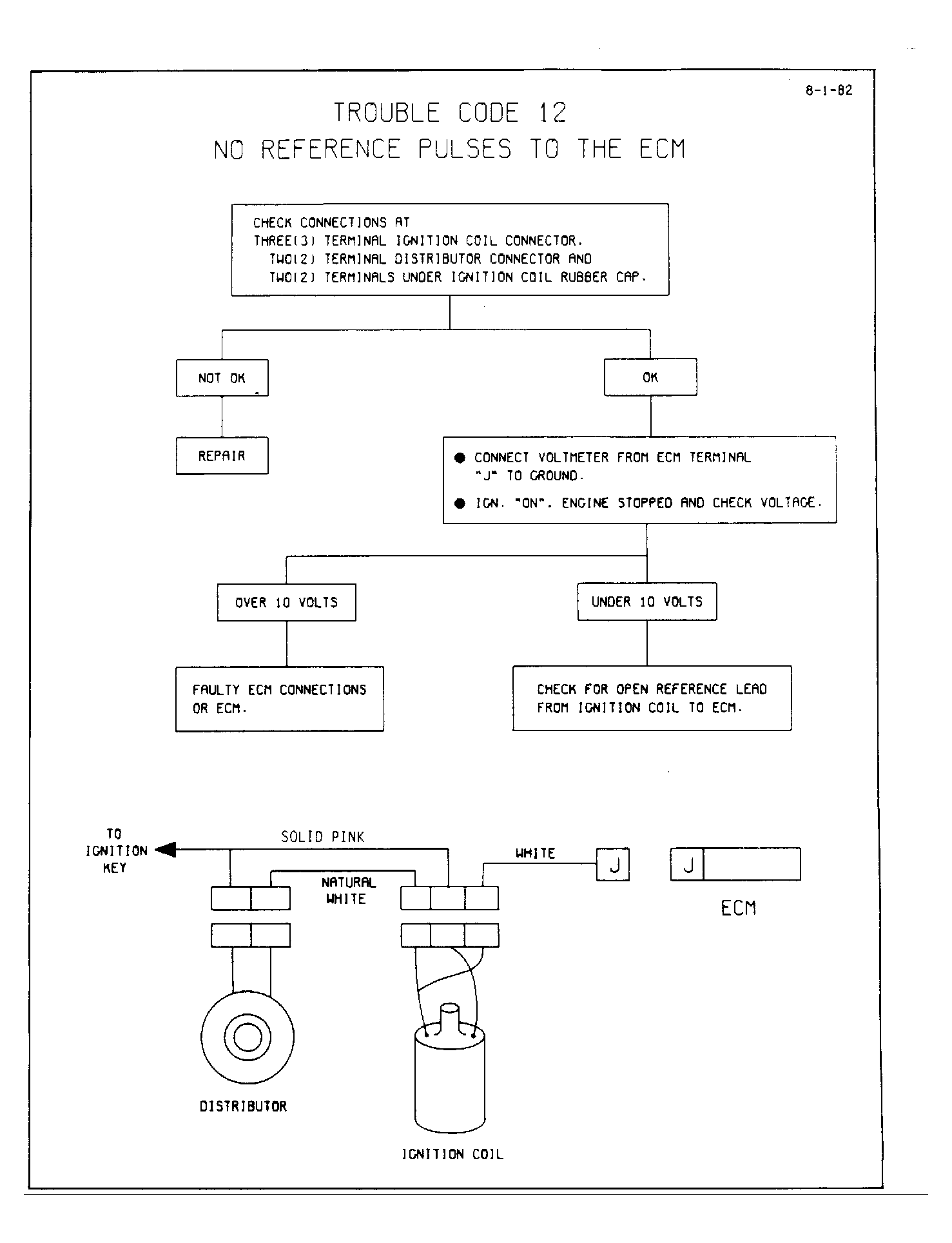

Fig 1: Code 12, No Reference Pulses to ECM

G9414

Fig 2: Code 12, No Reference Pulses to ECM

GB0020803
