Jimmy 6.2 C
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor Tests W/Codes
>>
ECM Terminal Id
ECM Terminal Id

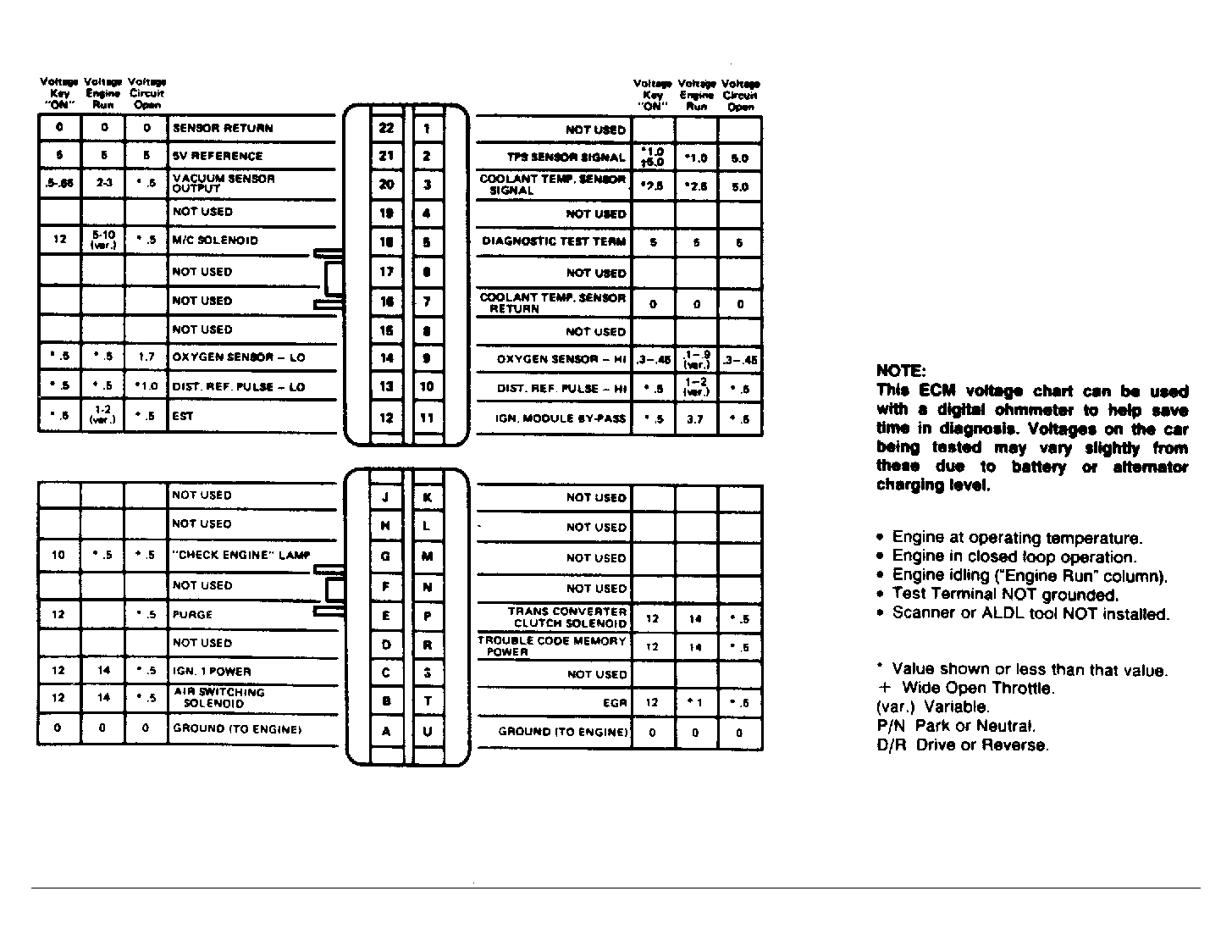

Fig 1: ECM Terminal Identification & Voltage - 2.8L Engine

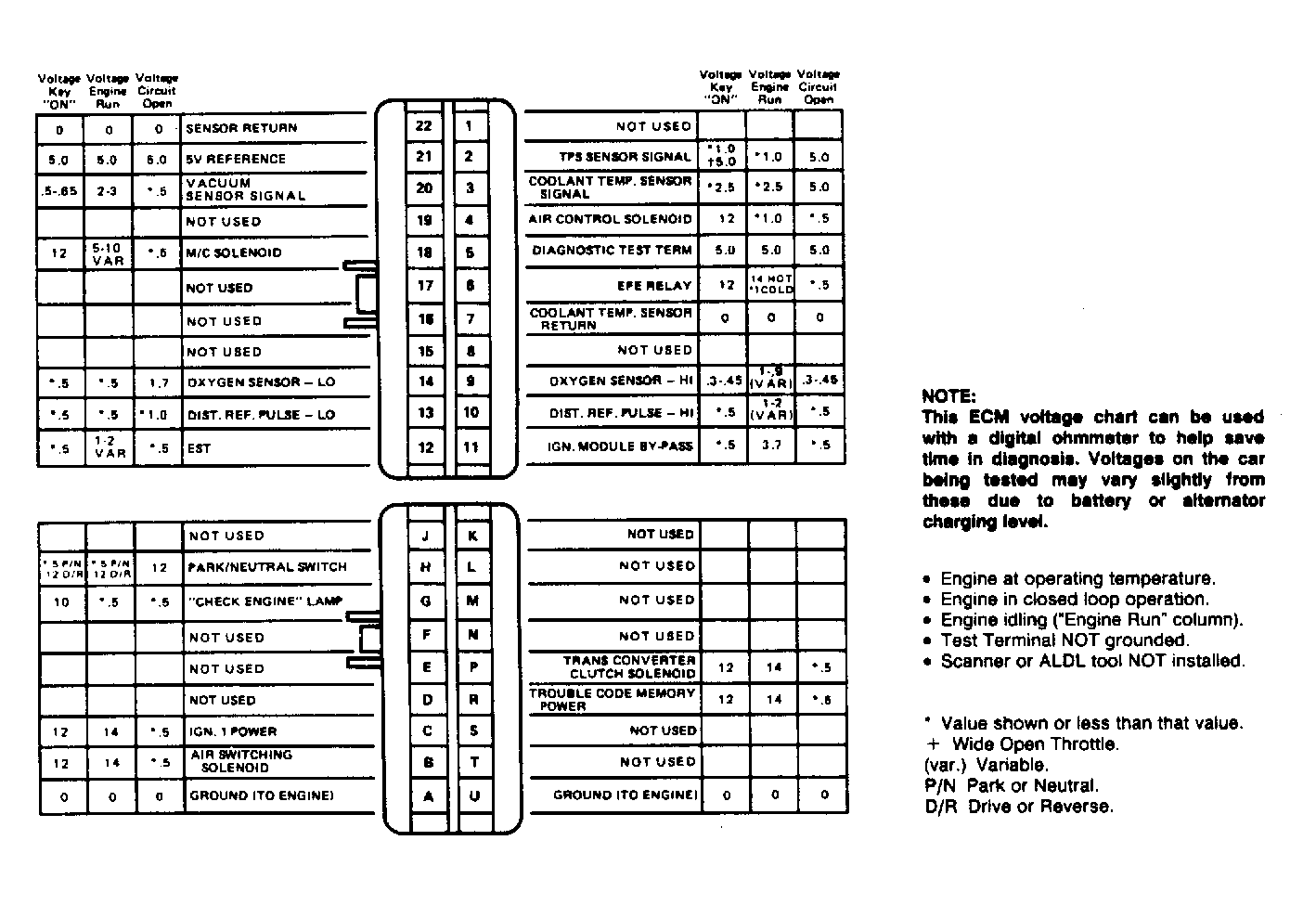

Fig 2: ECM Terminal Identification & Voltage - 4.1L Engine

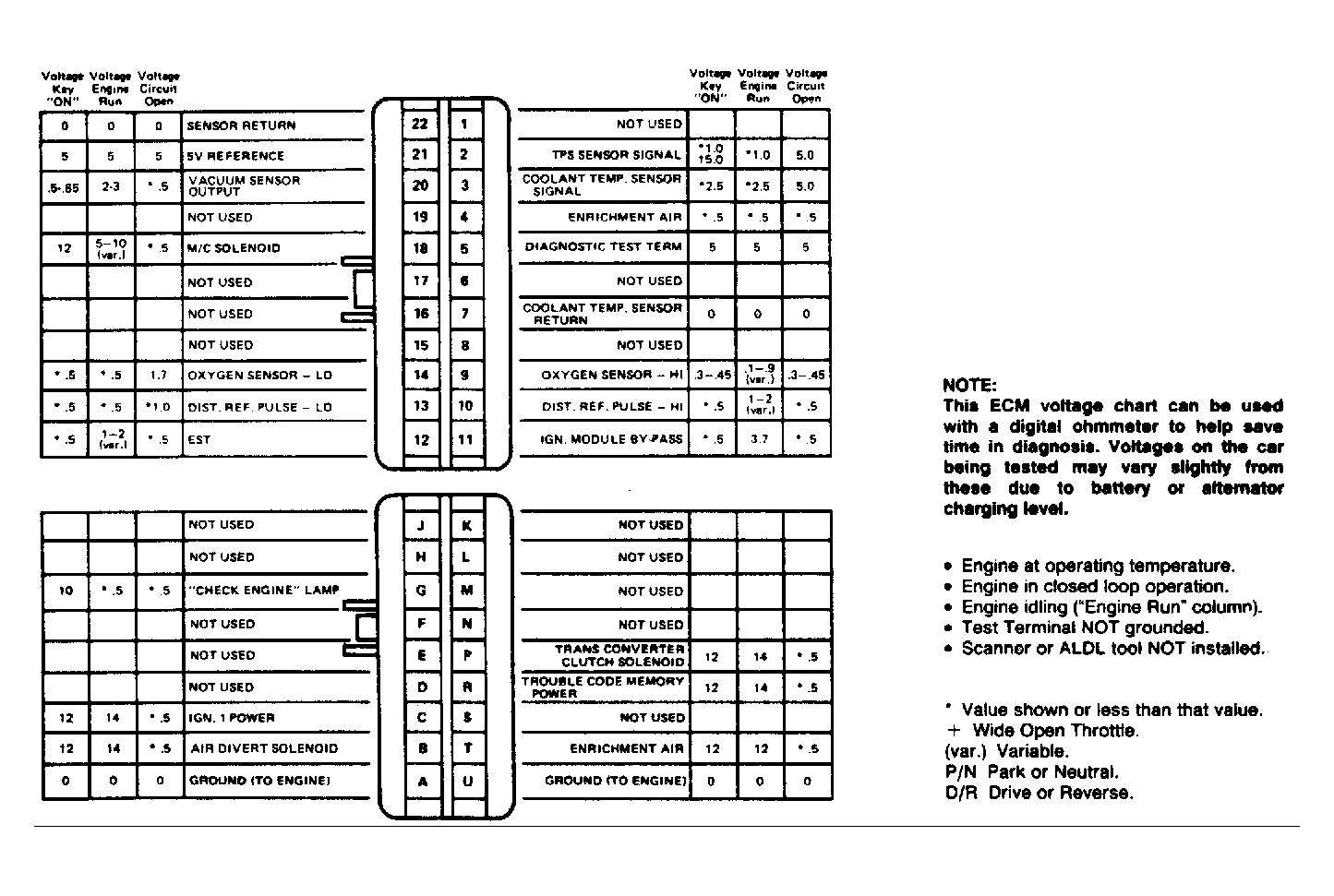

Fig 3: ECM Terminal Identification & Voltage - 5.0L & 5.7L Engines
