Chart C4B - Ignition System Check (2.8L Only)
Chart C4B - Ignition System Check (2.8L Only)

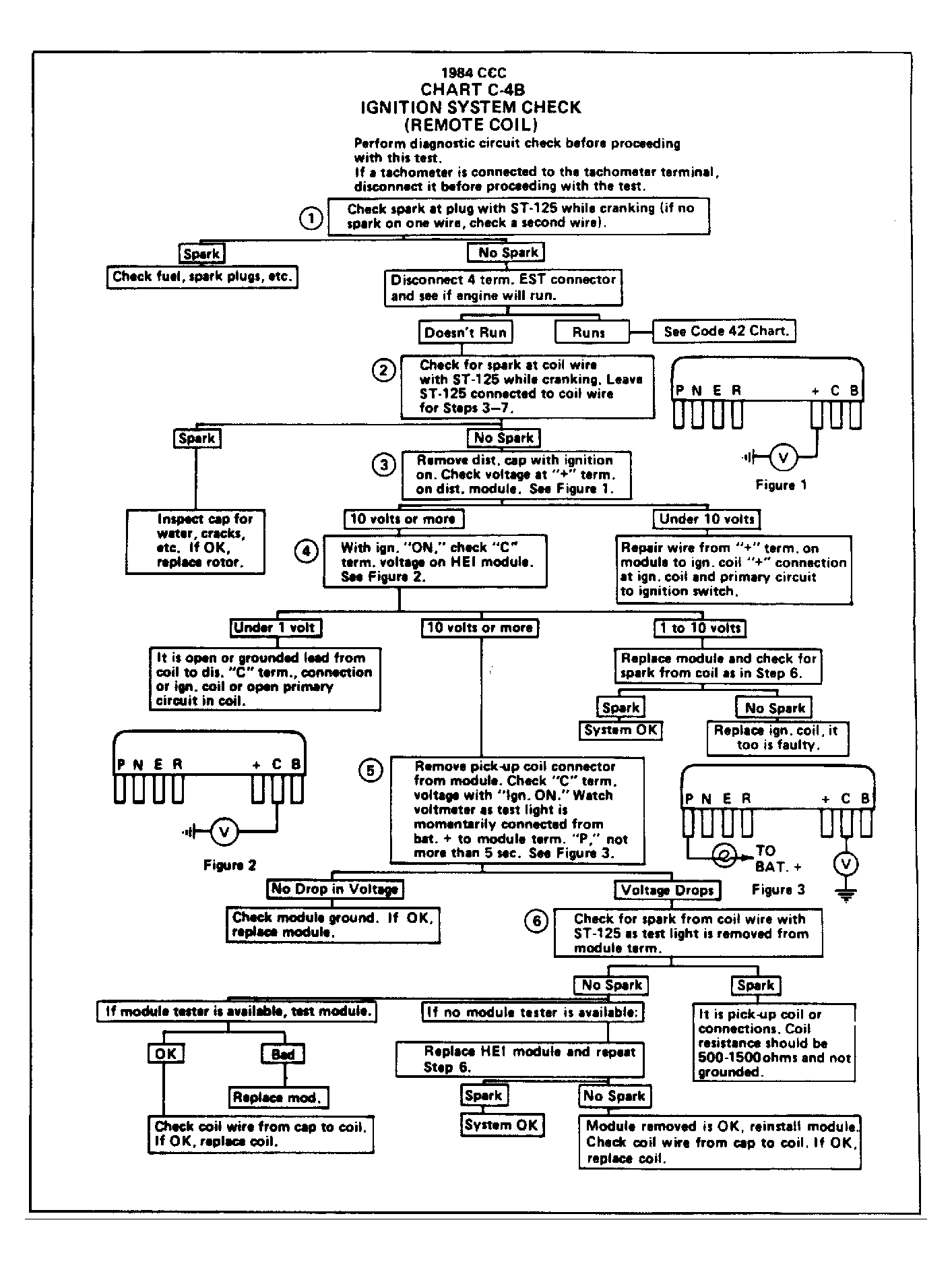

Fig 1: Chart C4B - Ignition System Check (2.8L Only)
