Chart C7C - Non-ECM Controlled EGR Valve Check

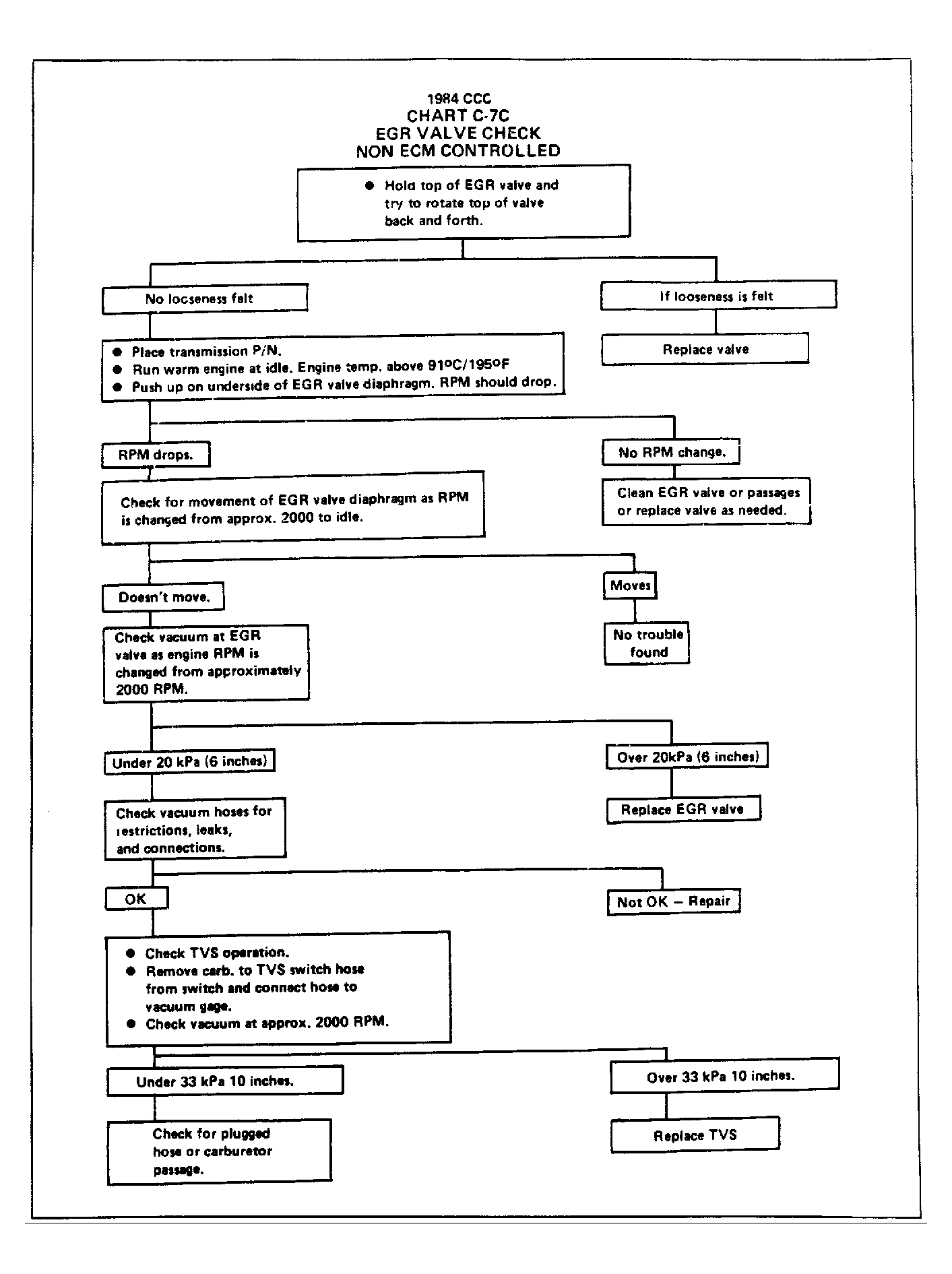

Fig 1: Chart C7C - Non-ECM Controlled EGR Valve Check

G9474
