Feedback Carburetor Component Test
>>
Diagnosis & Testing
>>
Chart C4A - Ignition System Check (All Except 2.8L)
Chart C4A - Ignition System Check (All Except 2.8L)

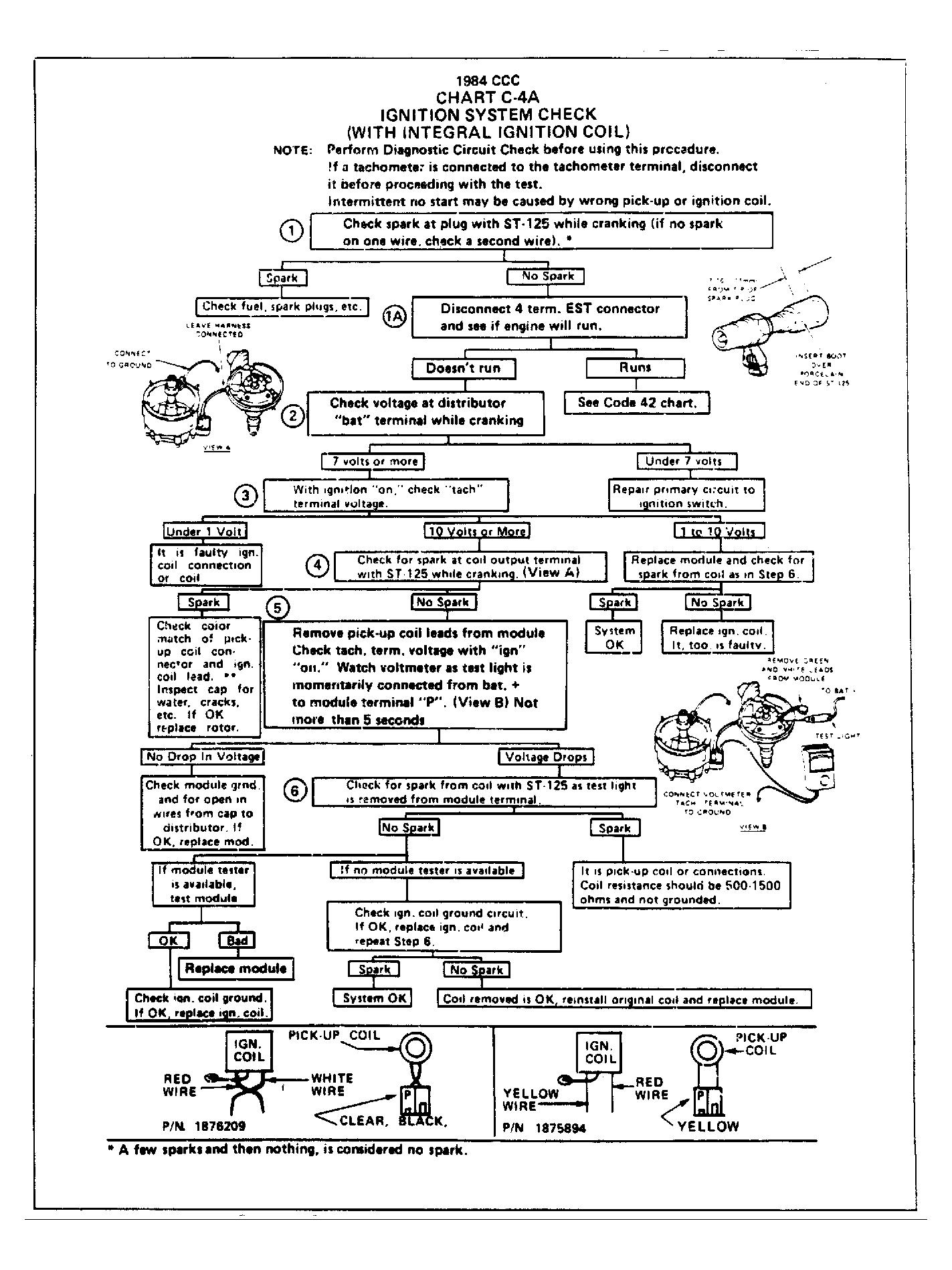

Fig 1: Chart C4A - Ignition System Check (All Except 2.8L)
