Drive Shaft Alignment: Inspection: Notes

Vibration can come from many sources. Before overhauling driveline, other sources of possible vibration should be checked first.

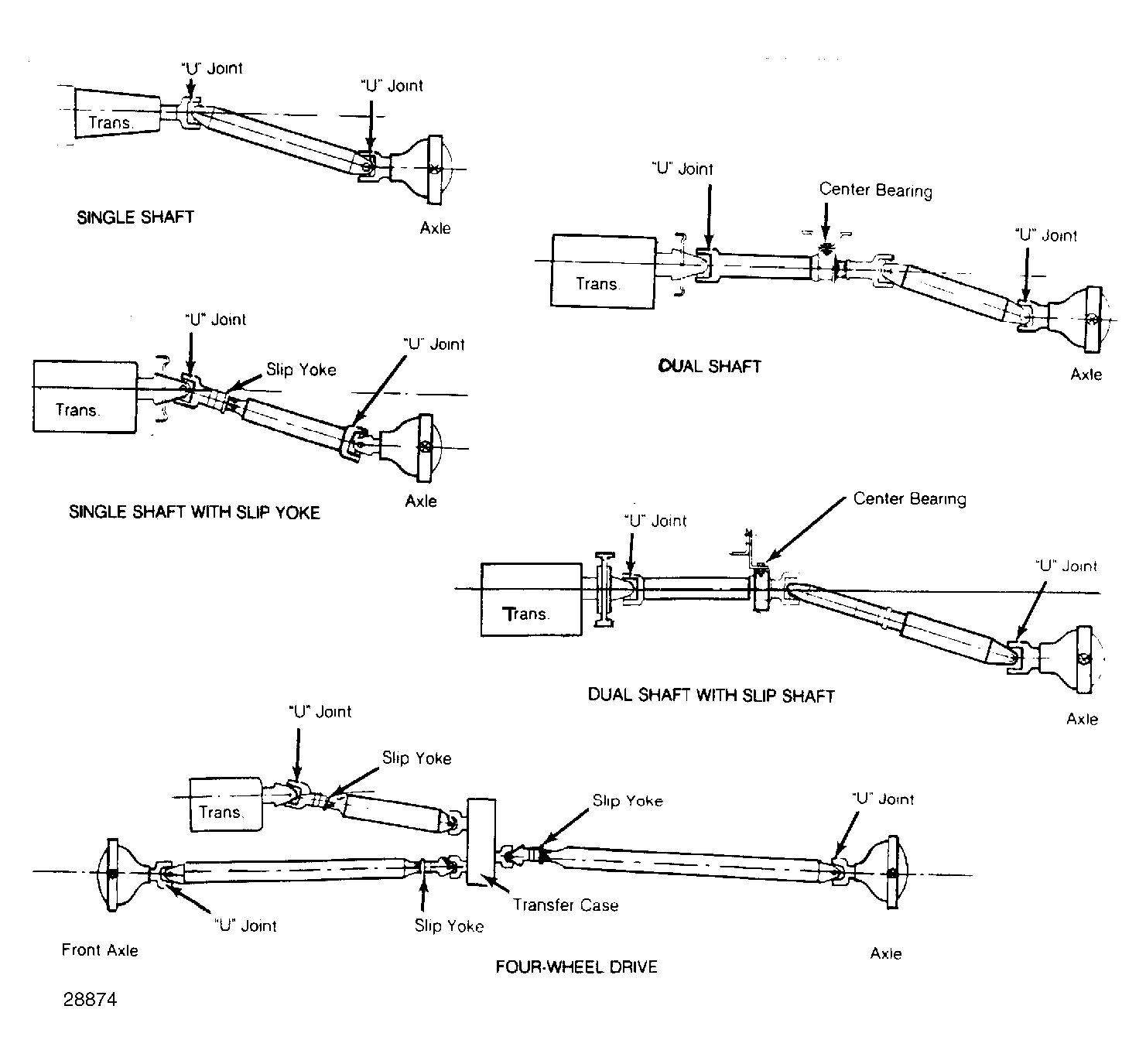

Fig 1: Five Commonly Used Drive Shaft Combinations
G28874
NOTE: Four-wheel drive models use 3 drive shafts.
