Ignition System - 4-CYL: Overhaul: Reassembly

To reassemble, reverse disassembly procedures, noting the following points:

• Governor springs should be fitted to spring hanger pin of governor shaft assembly with smaller hook end downward.
• Correctly align rotor and governor shafts, according to scribe marks made during installation.
• Use a new roll pin when installing collar.
• When installing breaker assembly, the edge at cutaway portion of base must be flush with edge of base fixing screw slot.
• Roll pin should be installed so that slot is parallel with cutaway portion of reluctor, as viewed from above.
• Harness terminal should be connected to pick-up coil and control module assembly. See Fig 1. Install gasket after setting cover to housing.

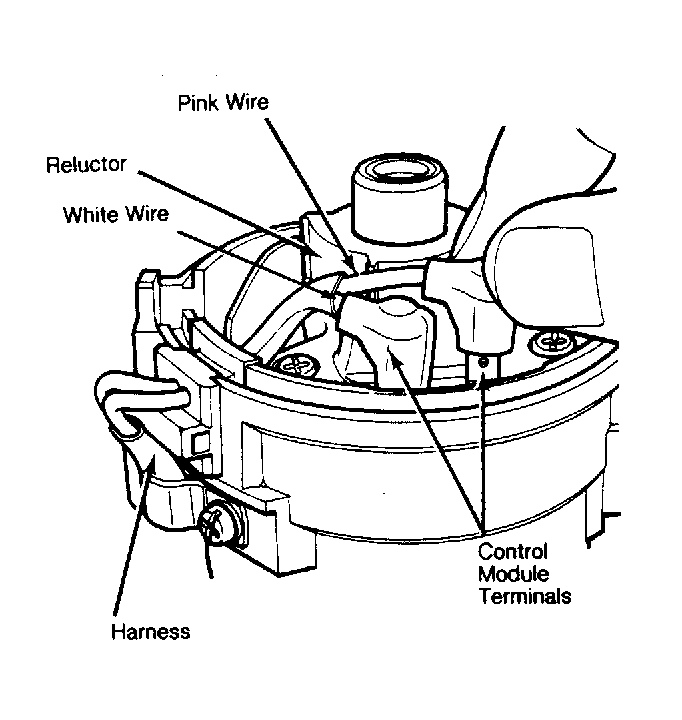

Fig 1: Attaching Harness to Control Module Notice wire colors and their location.

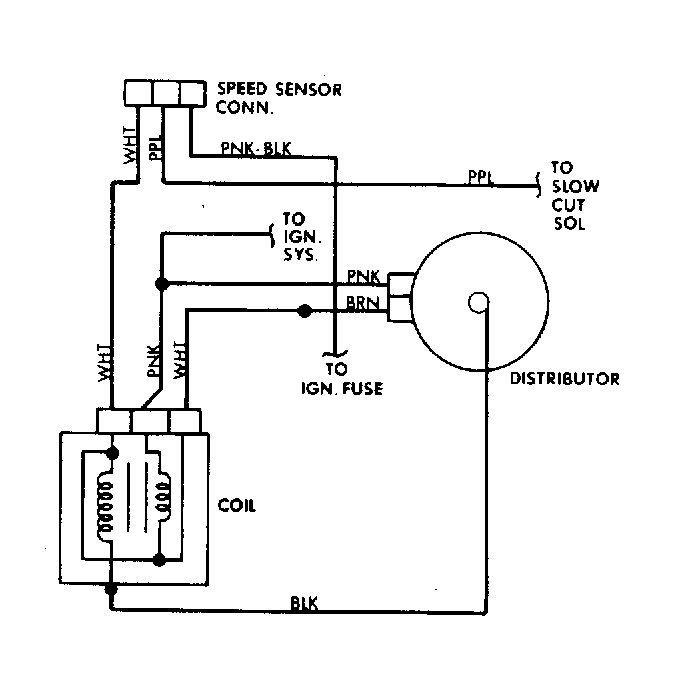

Fig 2: Wiring Diagram of Nippondenso Federal System Federal models have no computer.

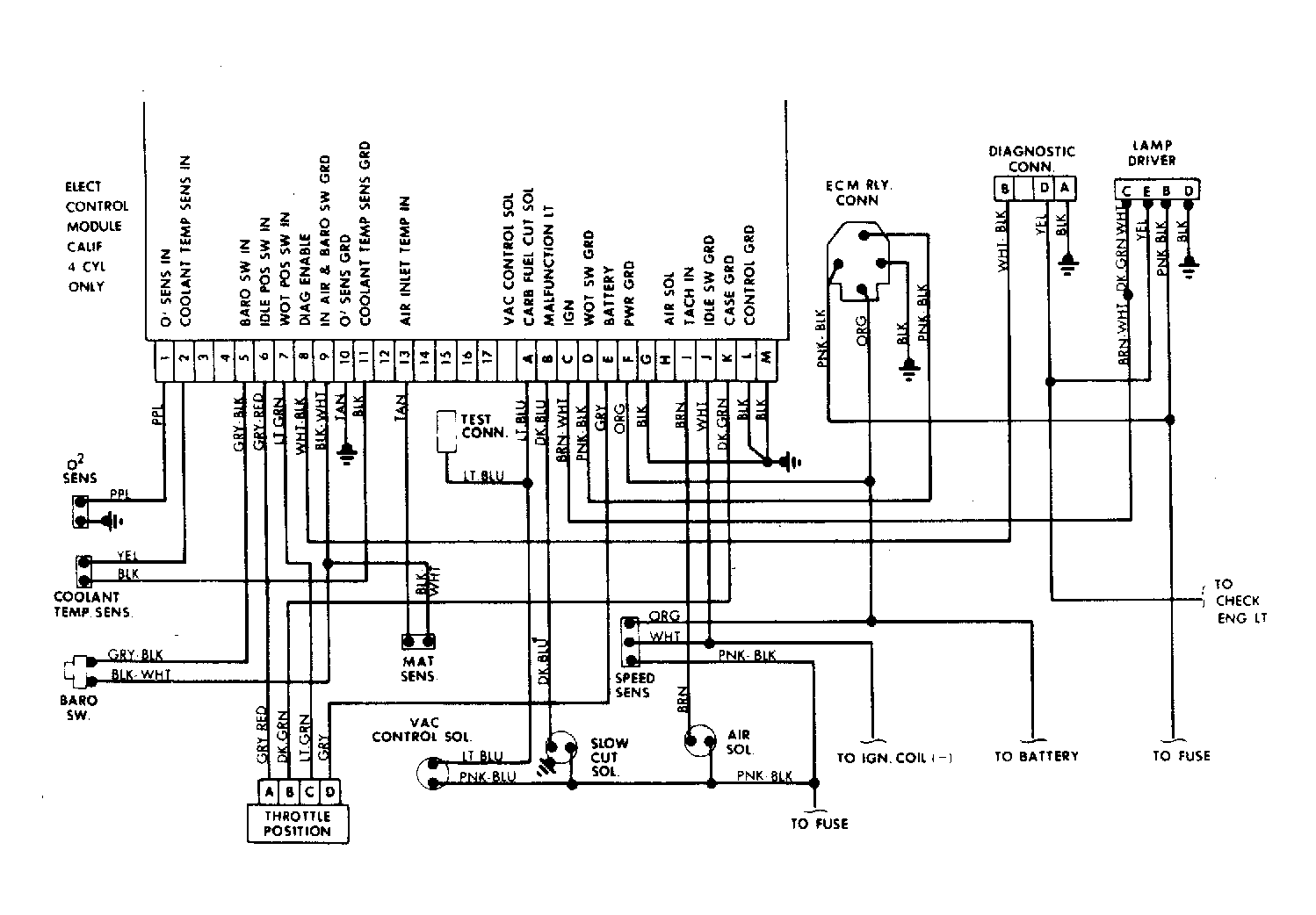

Fig 3: Wiring Diagram of Nippondenso California System California models have computerized engine control.
