1.9L CEC Tests W/Codes
>>
Code 12 - No Reference Signal To ECM
Code 12 - No Reference Signal To ECM

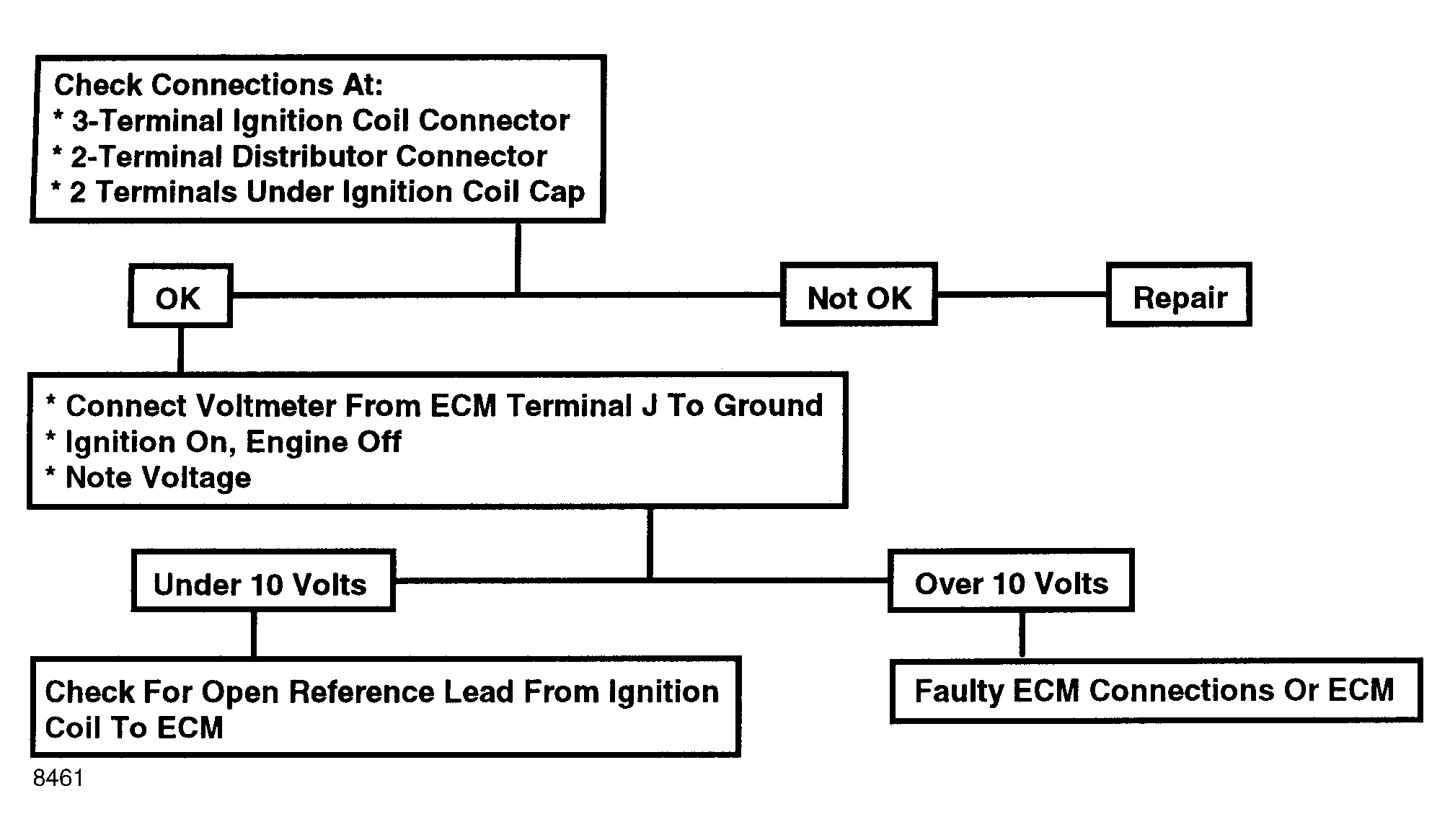

Fig 1: Flow Chart, Trouble Code 12 - No Reference Signal To ECM
Fig 2: Flow Chart, Trouble Code 12 - No Reference Signal To ECM
