1.9L CEC Tests W/Codes
>>
Vacuum Control Valve Check
Vacuum Control Valve Check

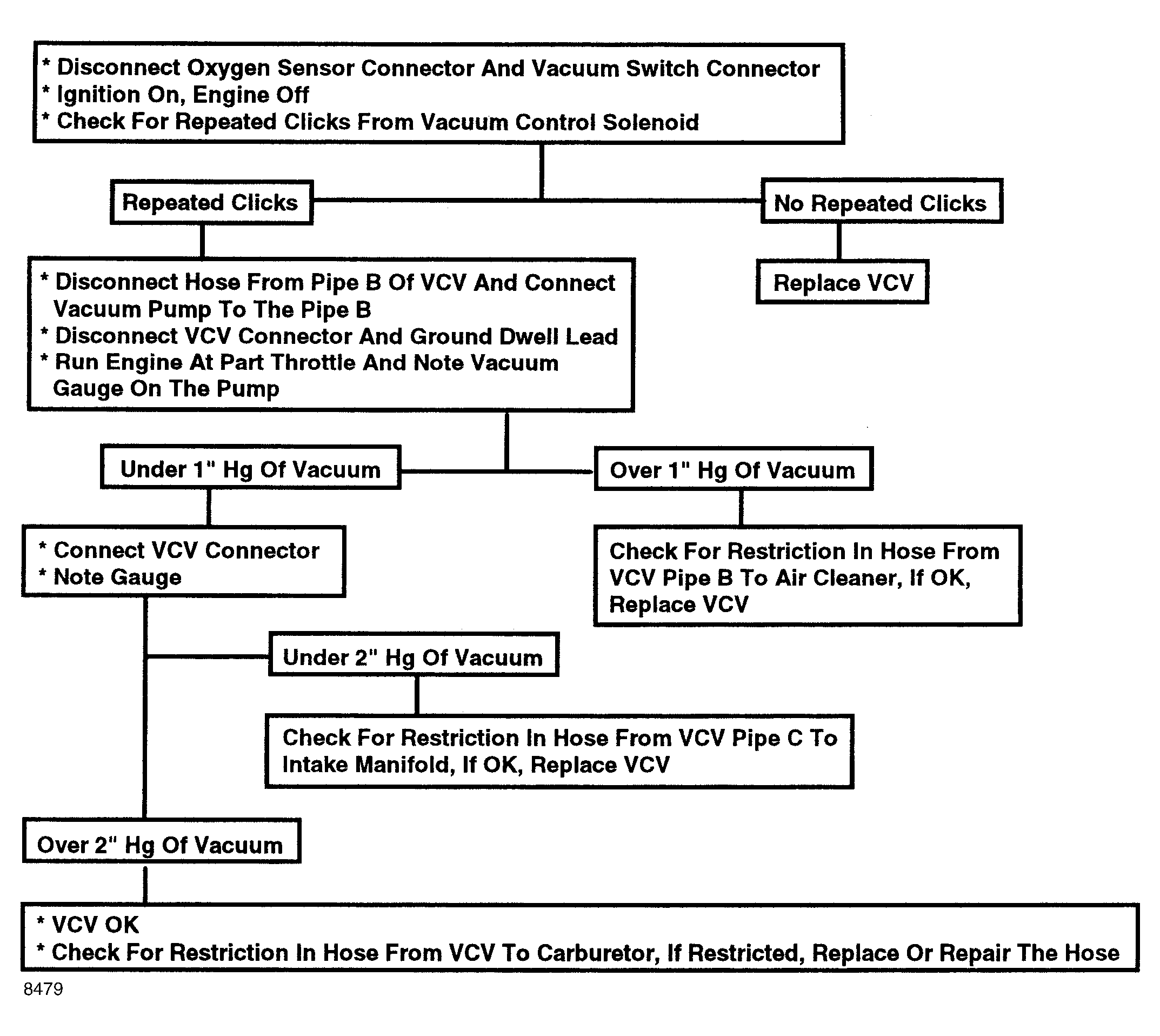

Fig 1: Flow Chart - Vacuum Control Valve Check
Fig 2: Flow Chart - Vacuum Control Valve Check
