1.9L CEC Tests W/Codes
>>
Chart 6 - No Code 12
Chart 6 - No Code 12

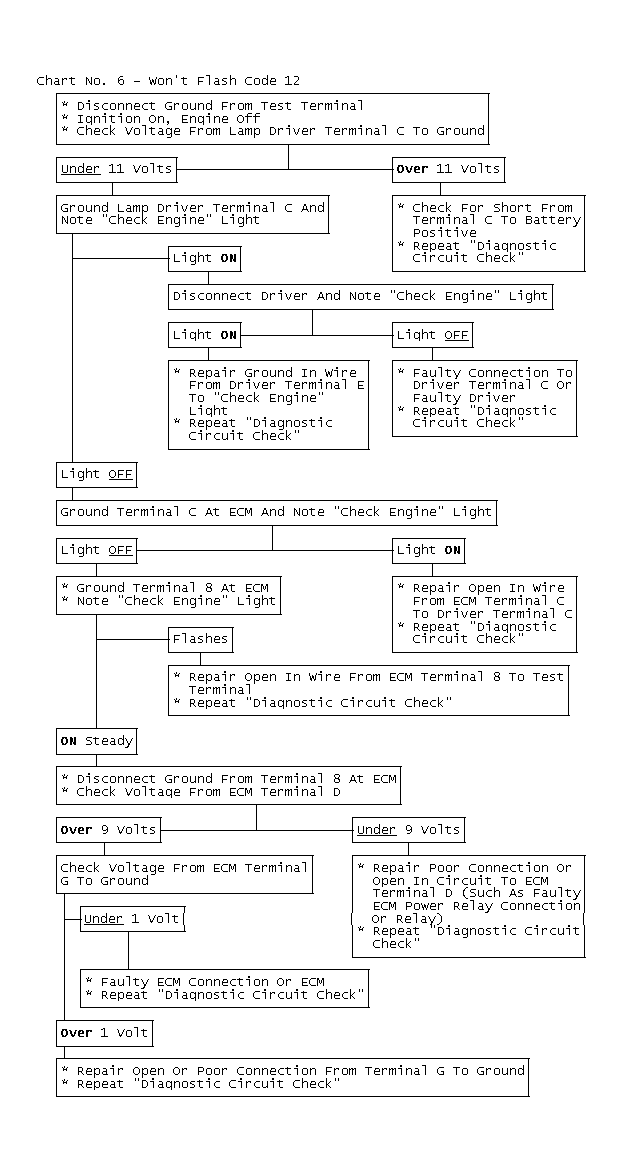

Fig 1: Chart No. 6 - Won't Flash Code 12

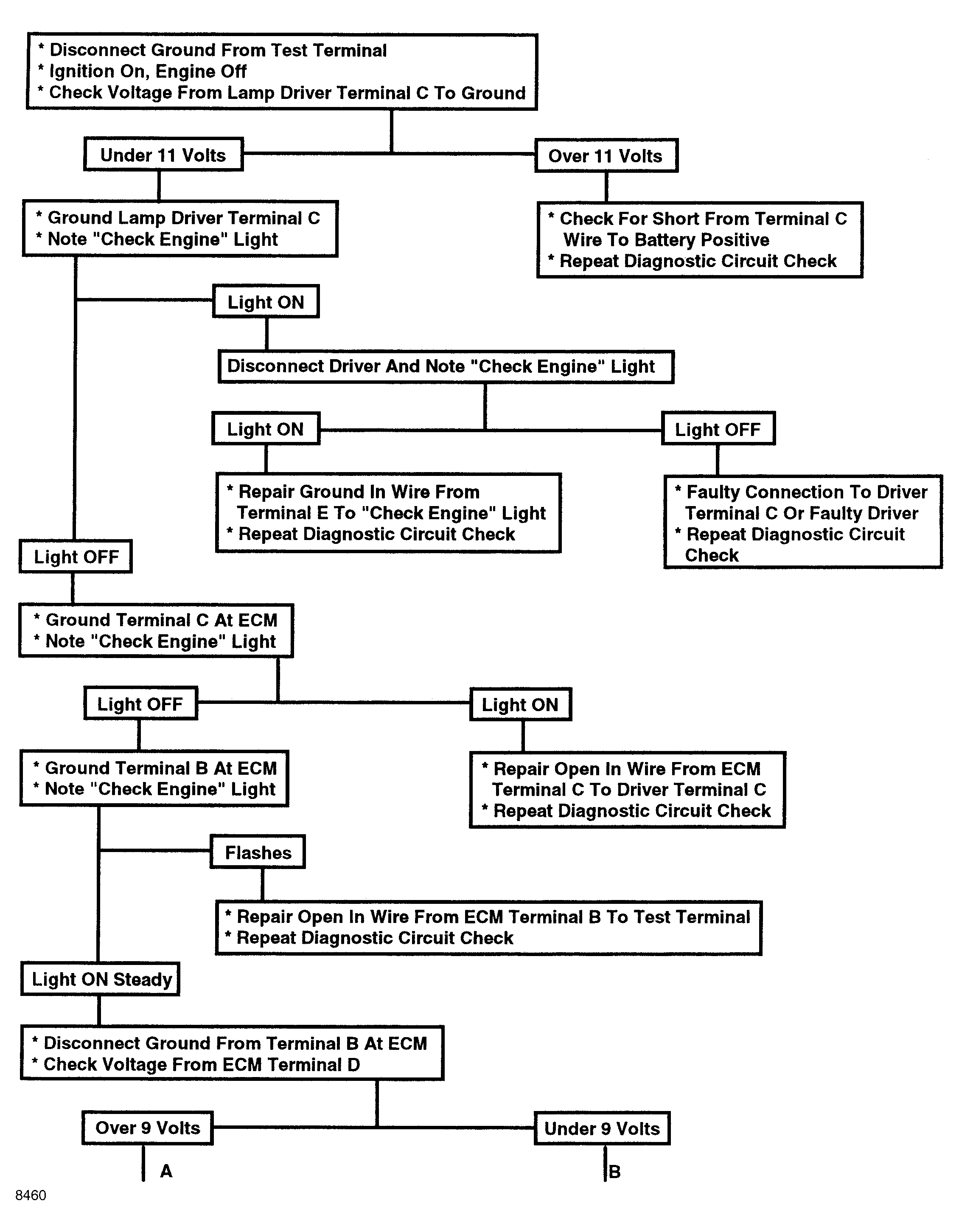

Fig 2: Chart No. 6 - Won't Flash Code 12
