Code 53 - Shorted Air Switching Solenoid/ECM
Code 53 - Shorted Air Switching Solenoid/ECM

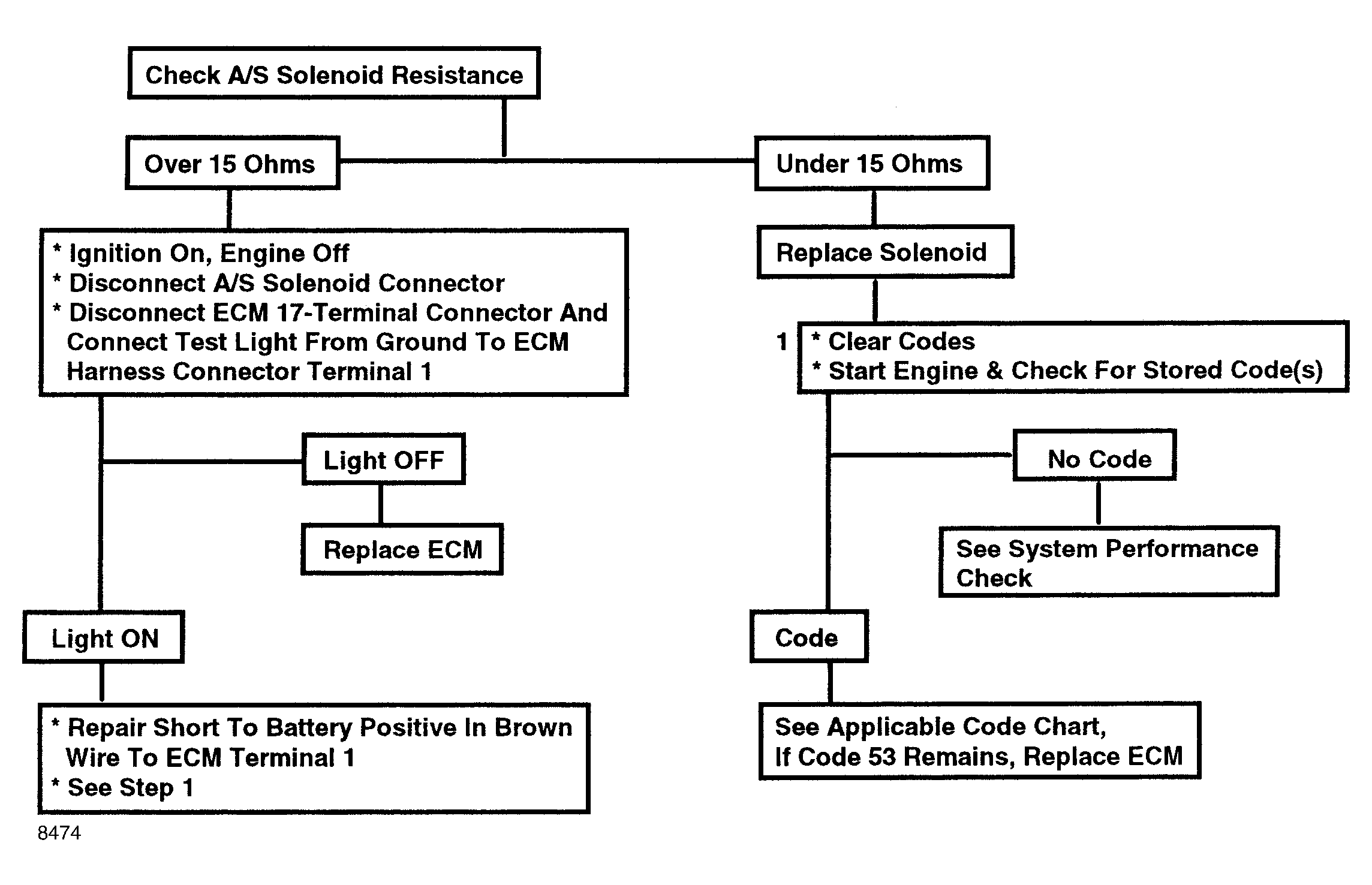

Fig 1: Flow Chart, Trouble Code 53 - Shorted Air Swit Sol And/Or Faulty ECM

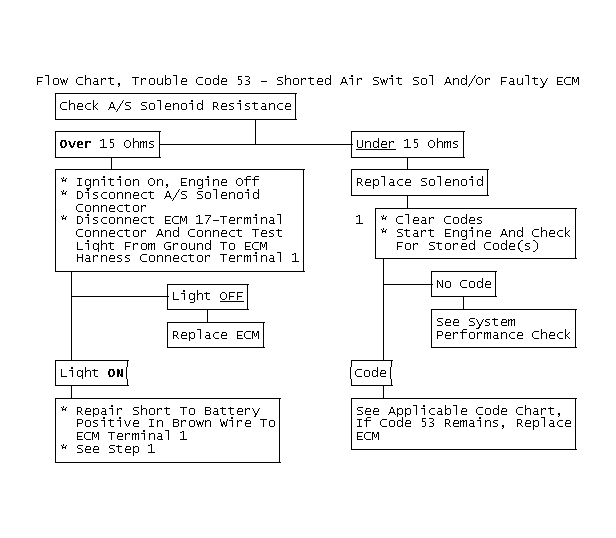

Fig 2: Flow Chart, Trouble Code 53 - Shorted Air Swit Sol And/Or Faulty ECM
