Home >> GMC >> 1983 >> Magnavan 6.2 J, 400/M40 >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor Component Test >> TPS Enrichment Check >> Throttle Position Sensor (TPS) Enrichment Check

Throttle Position Sensor (TPS) Enrichment Check

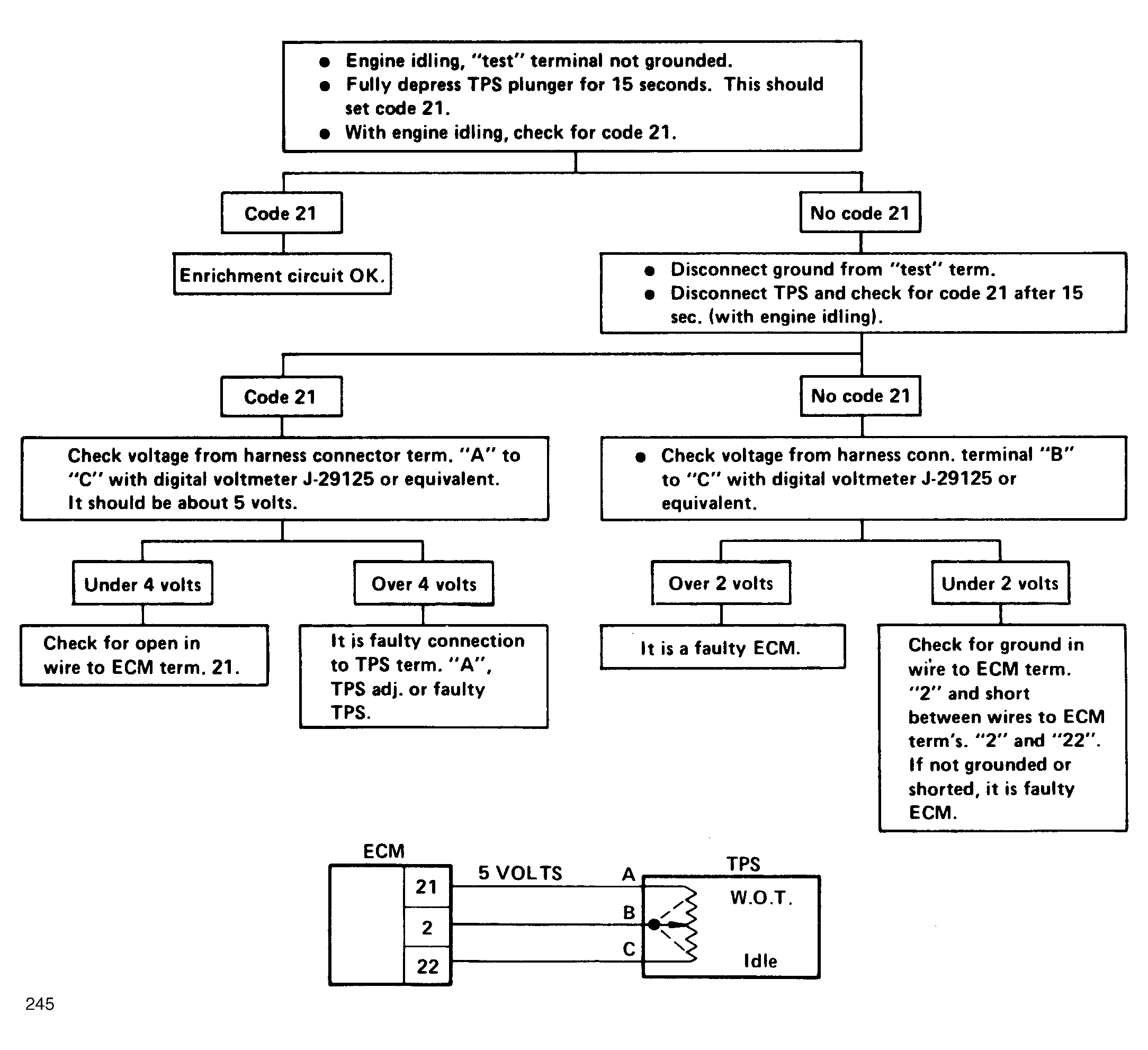

Fig 1: CHART 4 - TPS Enrichment Check

G245
