Home >> GMC >> 1983 >> Magnavan 5.7 L, 475/M40 >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor Component Test >> PULSAIR Solenoid Check

PULSAIR Solenoid Check

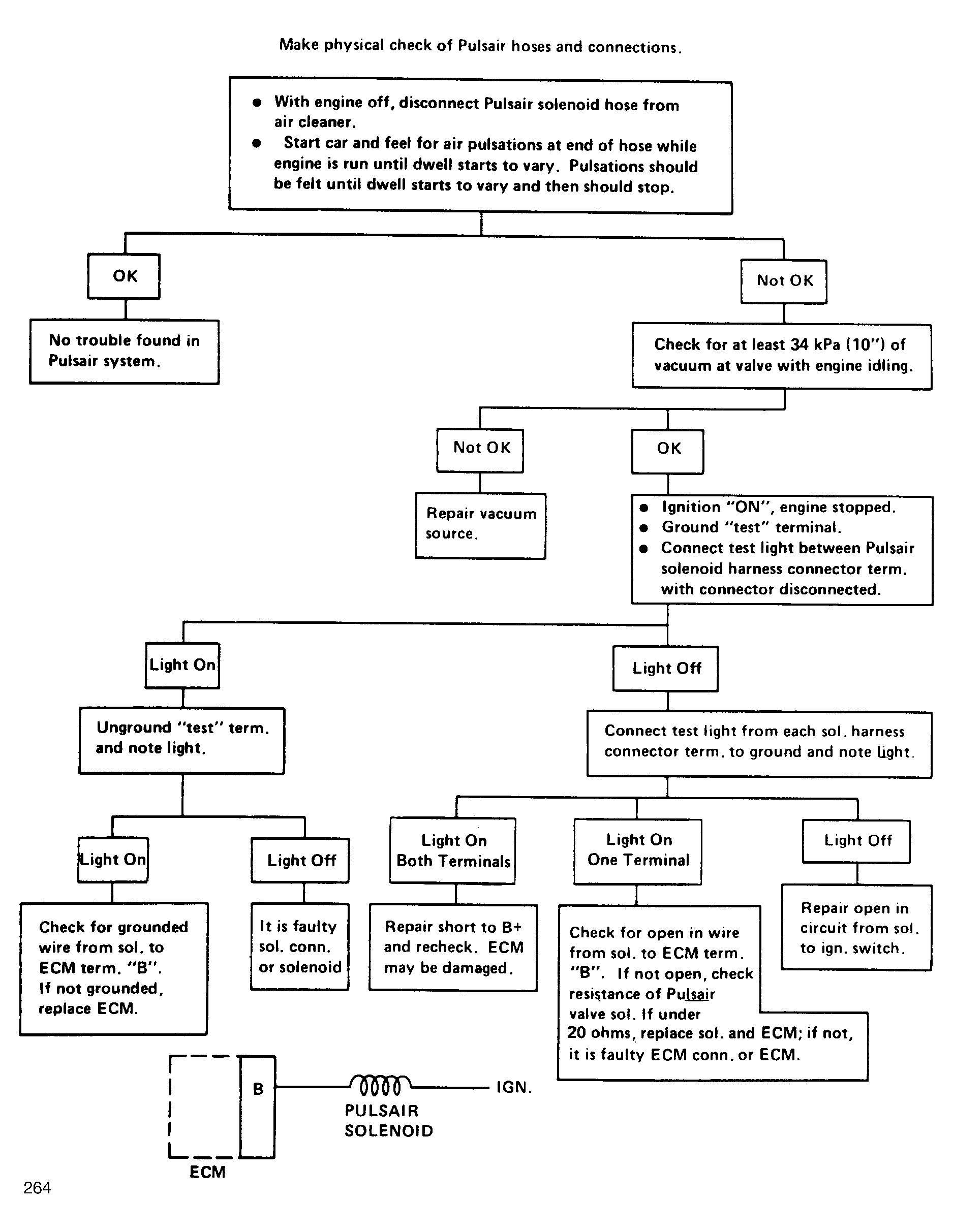

Fig 1: Flow Chart - Pulsair Solenoid Check

G264

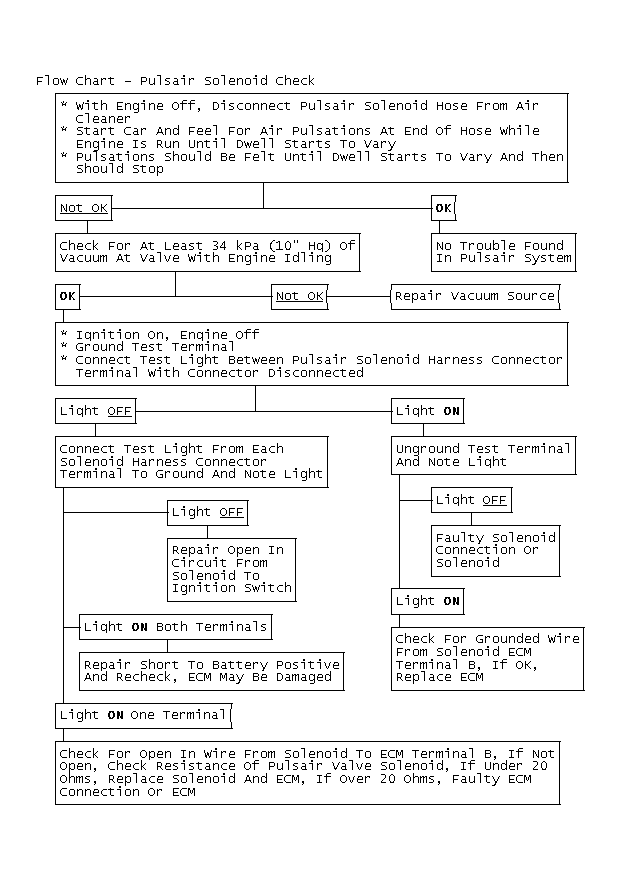

Fig 2: Flow Chart - Pulsair Solenoid Check

GB0046407
