Code 23 - M/C Solenoid Circuit

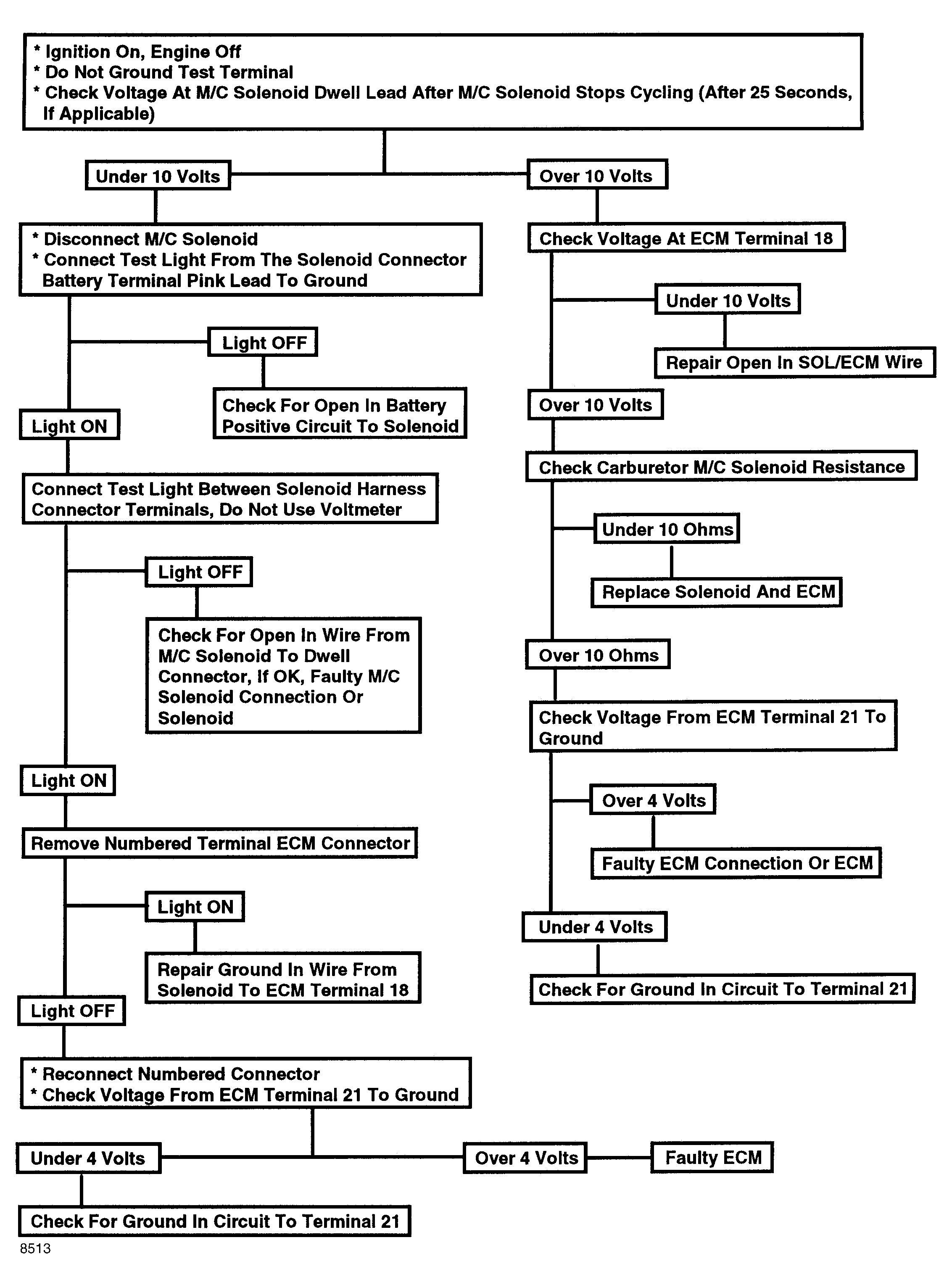

Fig 1: Flow Chart, Code 23 - Open or Grounded Mixt Control Sol Circuit

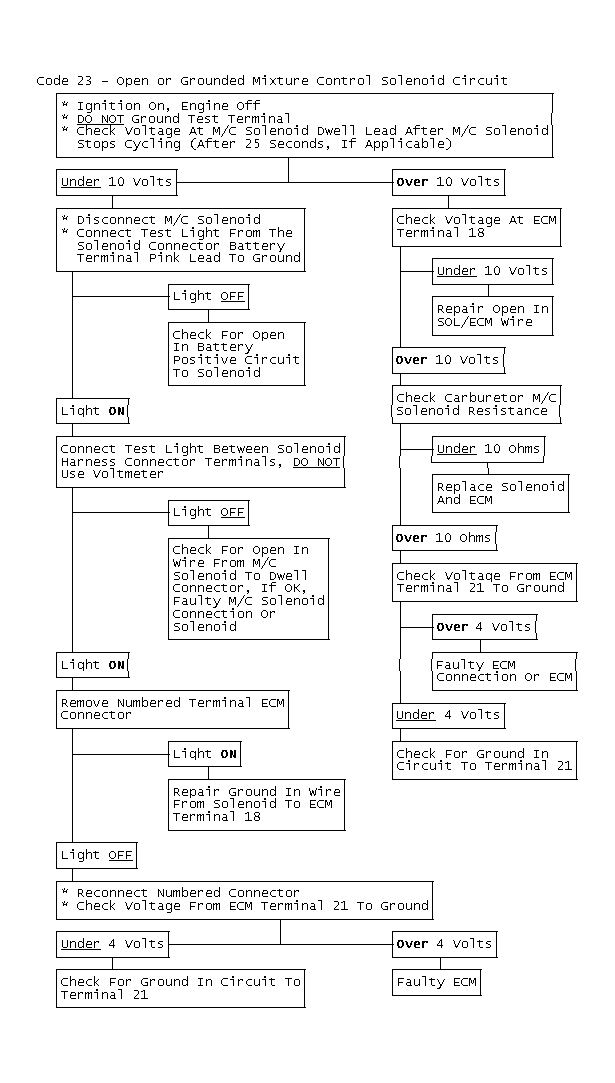

Fig 2: Flow Chart, Code 23 - Open or Grounded Mixture Control Solenoid Circuit
