Jimmy 6.2 C
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor Tests W/Codes
>>
"Check Engine" Light Inoperative
"Check Engine" Light Inoperative

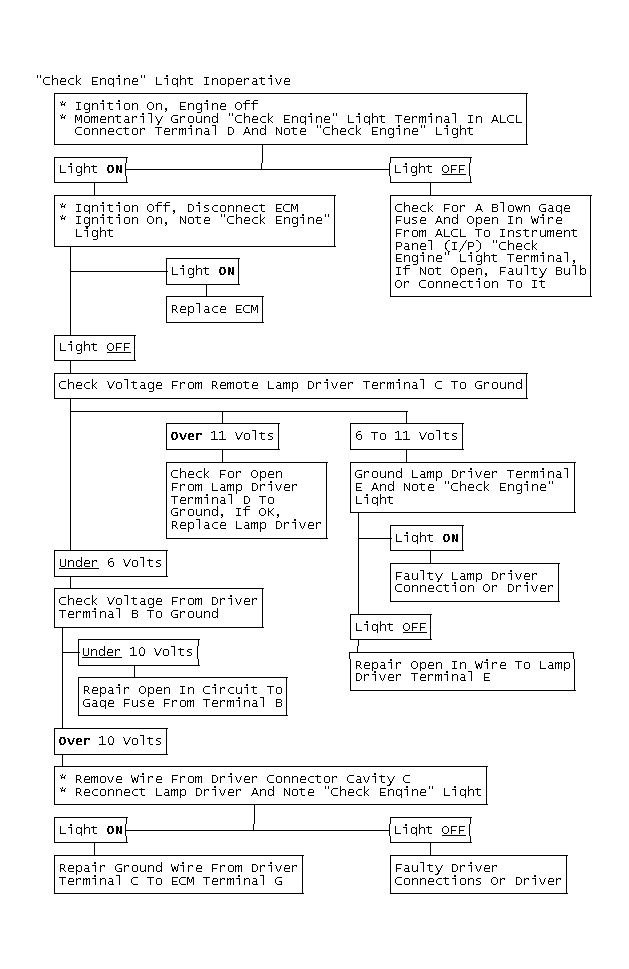

Fig 1: Flow Chart - "Check Engine" Light Inoperative

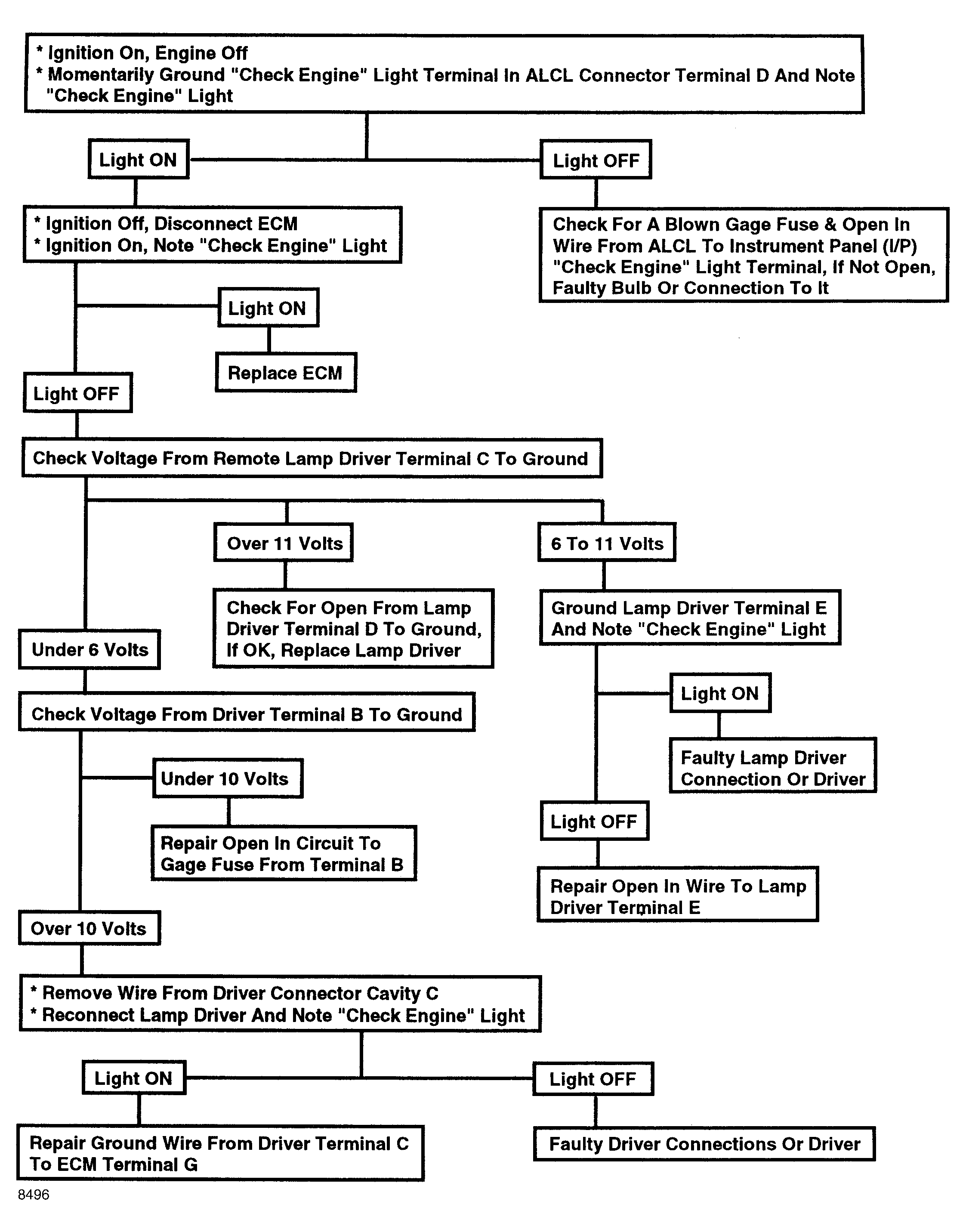

Fig 2: Flow Chart - "Check Engine" Light Inoperative
