Electronic Divert Valve (EDV) Check
Electronic Divert Valve (EDV) Check

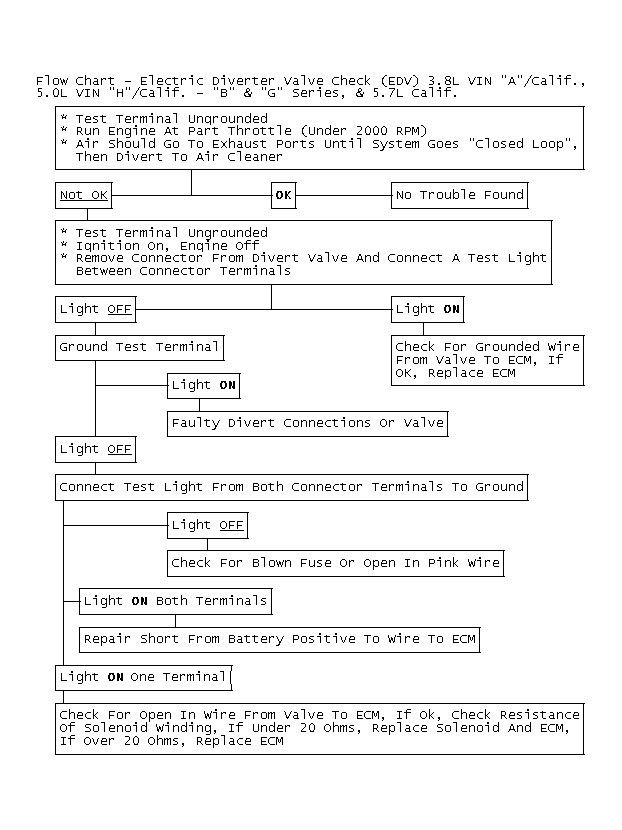

Fig 1: Flow Chart - Electric Diverter Valve Check (EDV) 3.8L VIN "A"/Calif., 5.0L VIN "H"/Calif. - "B" & "G" Series, & 5.7L Calif.

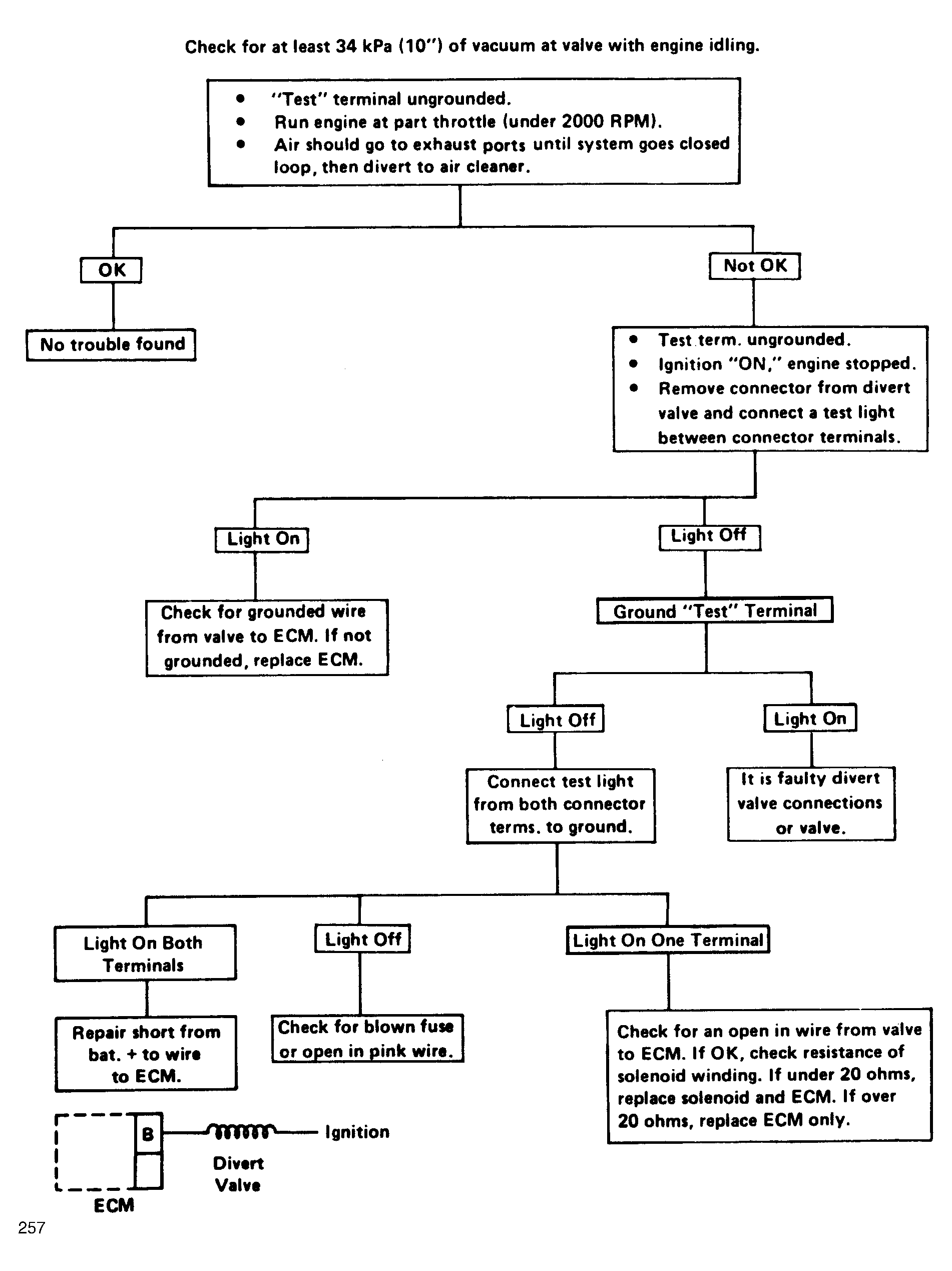

Fig 2: Flow Chart - Electric Diverter Valve Check (EDV) 3.8L VIN "A"/Calif., 5.0L VIN "H"/Calif. - "B" & "G" Series, & 5.7L Calif.
