Home >> GMC >> 1983 >> Jimmy 6.2 C >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor Component Test >> Cranks, But Won't Run

Cranks, But Won't Run

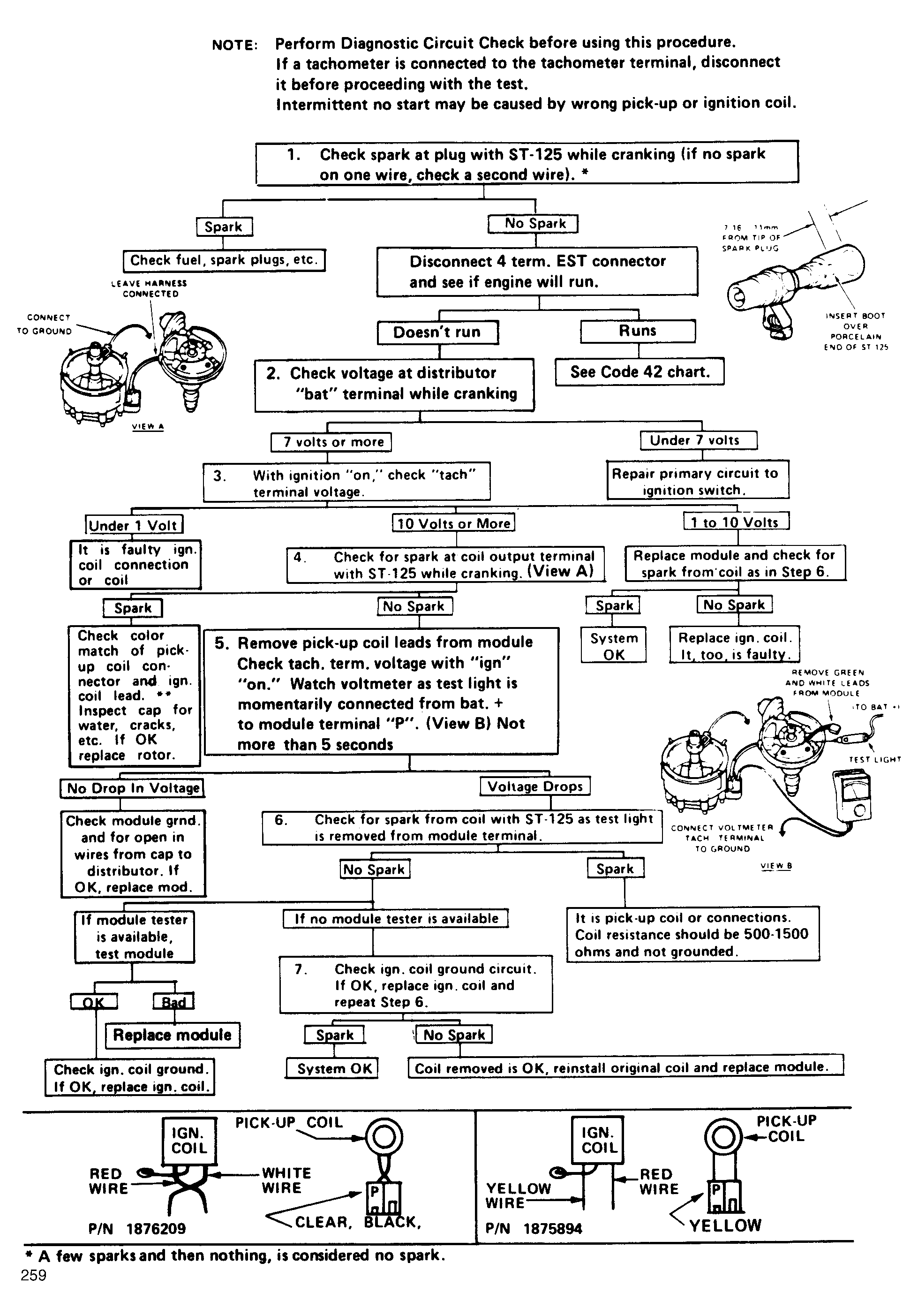

Fig 1: Flow Chart - Engine Cranks, But Won't Run (W/Integral Coil)

G259

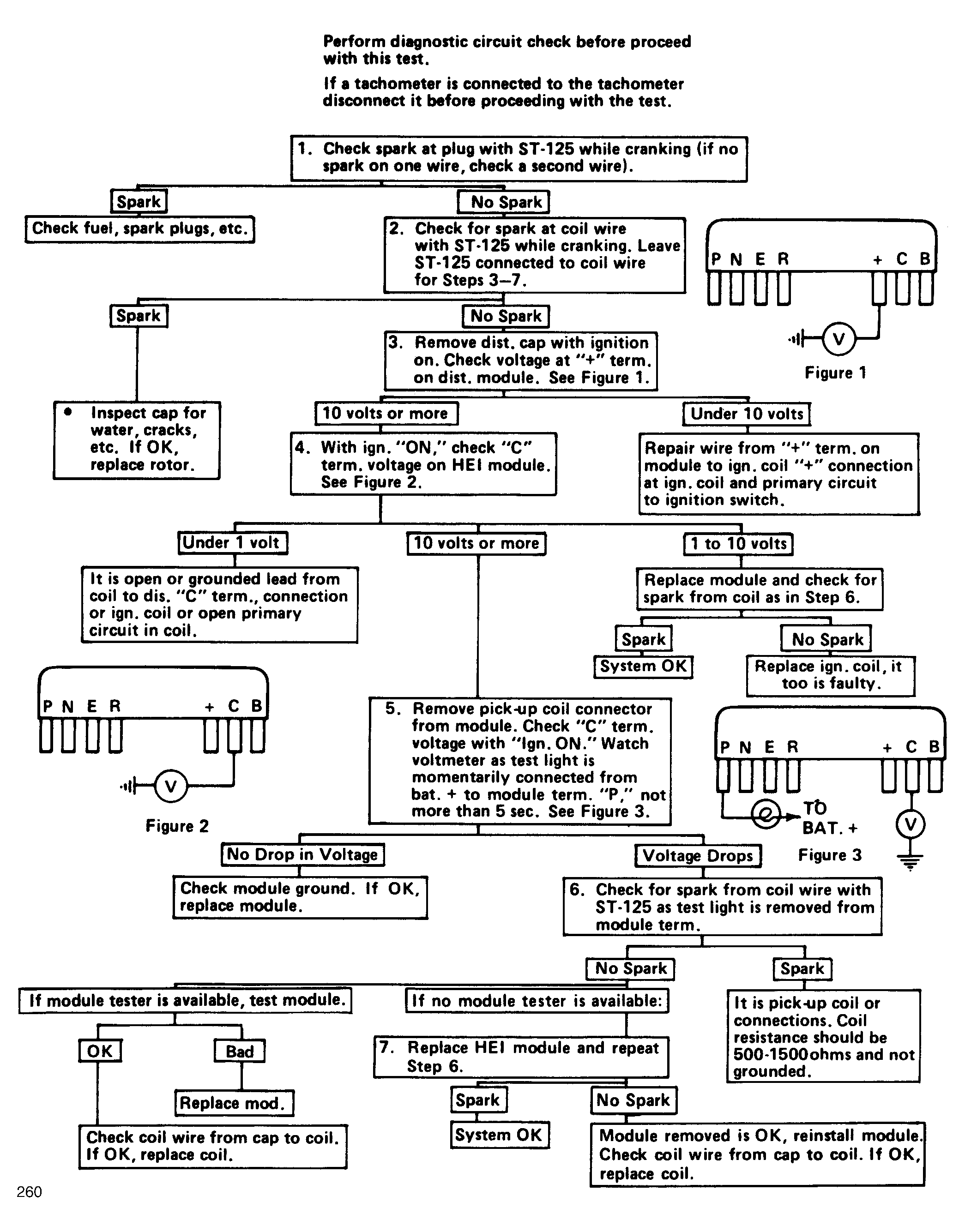

Fig 2: Flow Chart - Engine Cranks, But Won't Run (With Remote Coil)

G260
