Home >> GMC >> 1983 >> Jimmy 6.2 C >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Wiring Diagrams

Wiring Diagrams

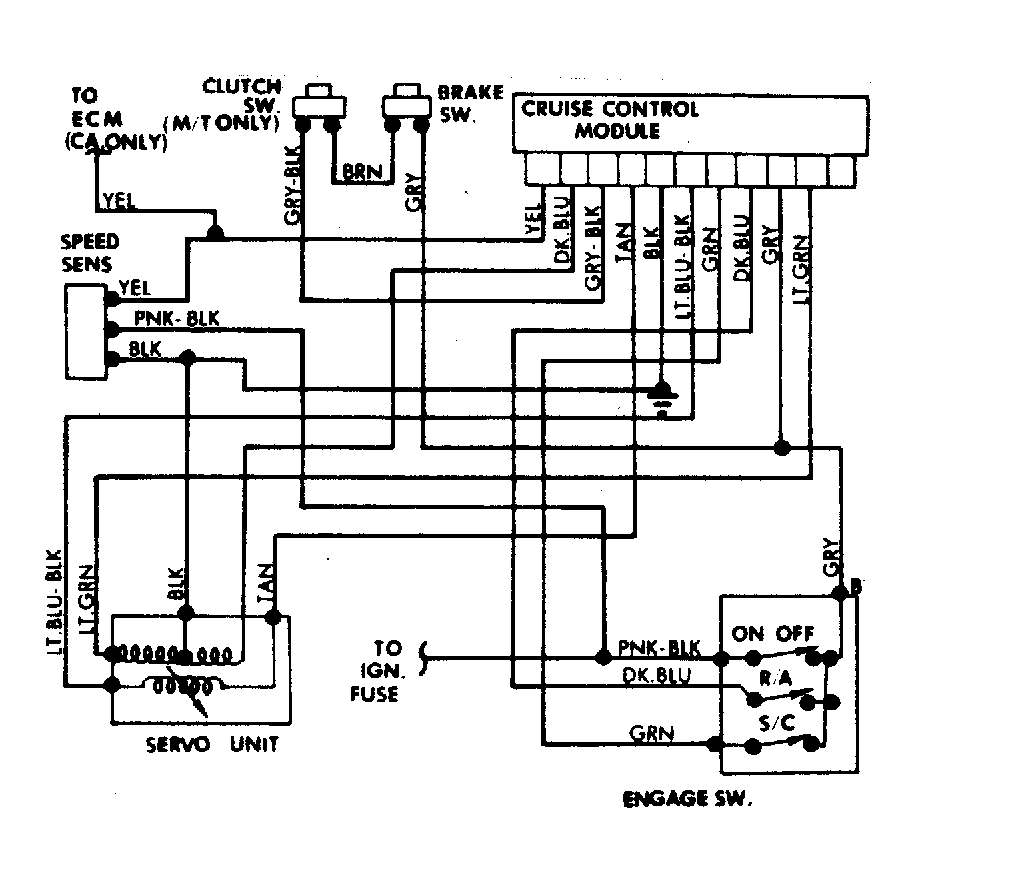

Fig 1: General Motors Custom Cruise III Wiring Diagram

G10785
