Feedback Carburetor Component Test
>>
Canister Purge Valve Check
Canister Purge Valve Check

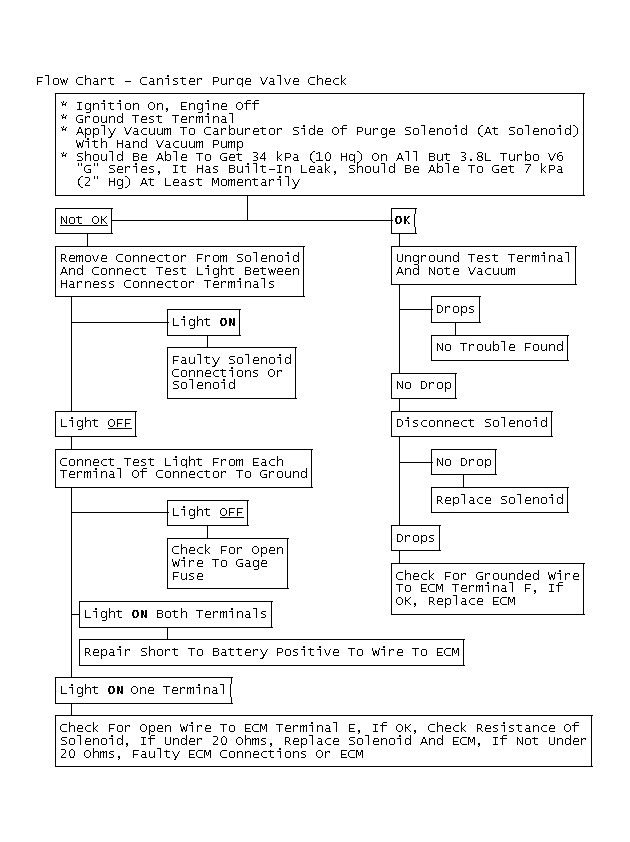

Fig 1: Flow Chart - Canister Purge Valve Check

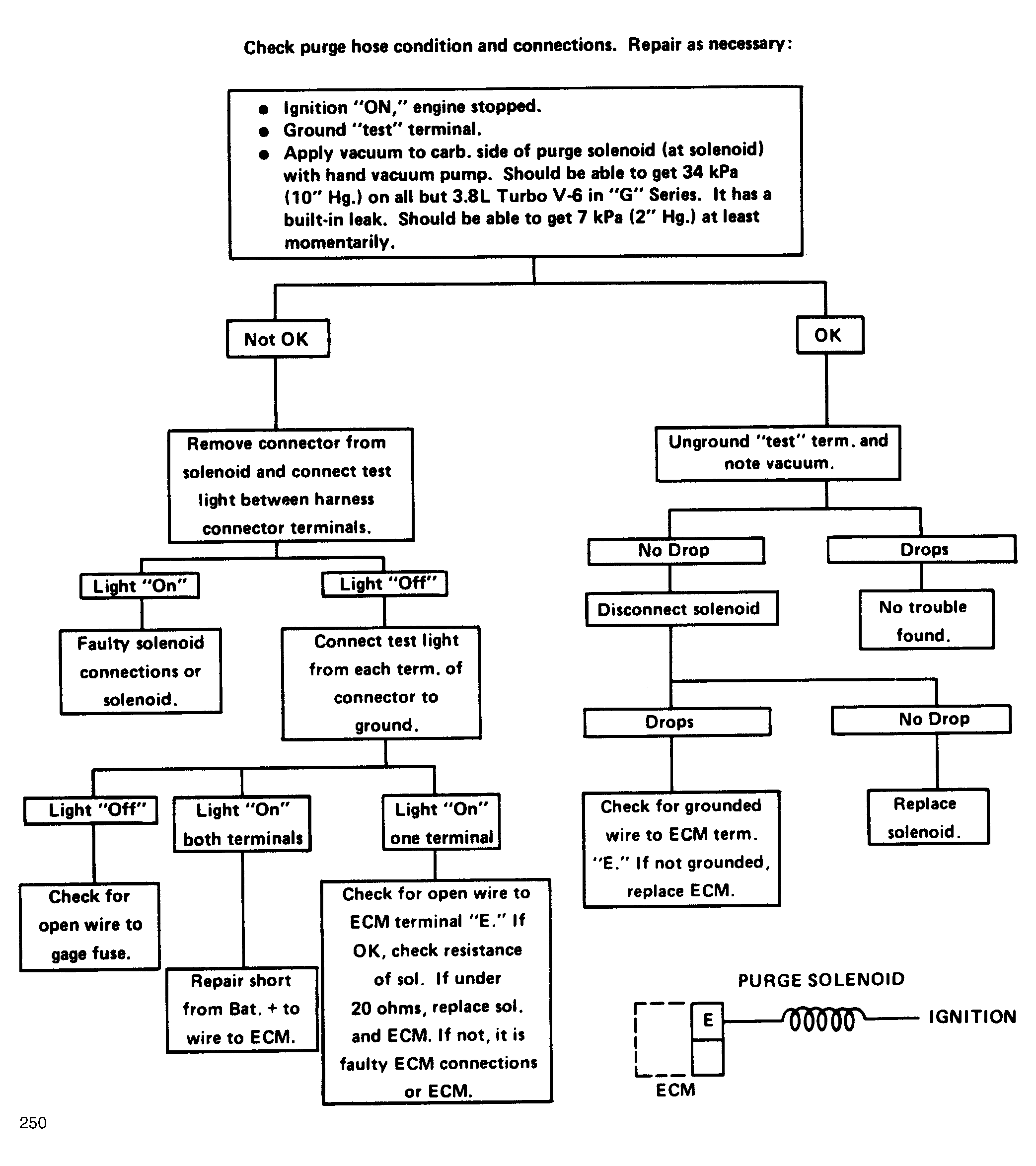

Fig 2: Flow Chart - Canister Purge Valve Check
