Fuse Block & Flasher Locations

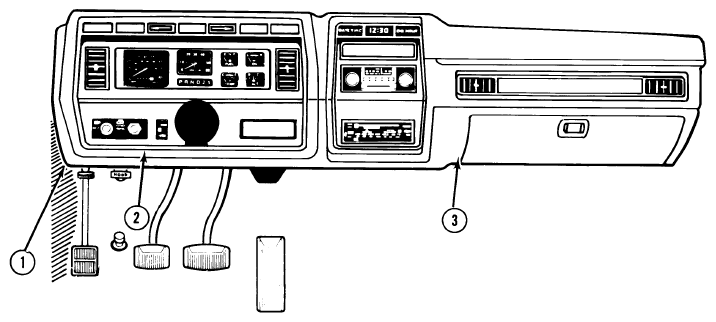

Fig 1: Fuse Block & Flasher Locations
G09337450Courtesy of NOT AVAILABLE
FUSE BLOCK & FLASHER LOCATIONS

Manufacturer and Model Fuse Block Hazard Flasher Turn Signal Flasher
Chrysler Corp.
  Pickup Models 2 Left of Steering Column On Fuse Block On Fuse Block
  Van Models 3 Under Glove Box Right of Fuse Block Right of Fuse Block
Ford Motor Co.
  Bronco & Pickup Models 2 Left of Steering Column On Fuse Block On Fuse Block
  Van Models 2 Left of Steering Column 1 Left of Wiring Harness Near Fuse Block
General Motors
  Blazer & Pickup Models 2 Left of Steering Column On Fuse Block Near Fuse Block
  "P" Models 2 Left of Steering Column On Fuse Block Near Fuse Block
  Van Models 2 Left of Steering Column On Fuse Block Near Fuse Block
Jeep
  CJ, Cherokee, Scrambler 2 Left of Steering Column On Fuse Block On Fuse Block
  Wagoneer & Truck Models 2 Left of Steering Column On Fuse Block On Fuse Block
