Float Level
- Remove air horn. Remove gasket from main body casting. Hold float retainer firmly in place.

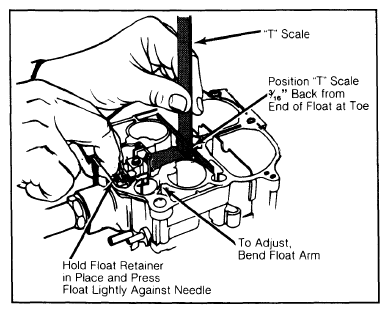

- Using light finger pressure, gently push float against needle. Using a "T" scale, measure distance from top of casting to top of float. Gauging point should be 3/16" back from end of float at toe. See Fig 1.
- If adjustment is needed, remove float from main body of carburetor. Bend float arm up or down. Install float and recheck float level.
- Be sure to check float alignment after adjusting operation. Install new gasket and reinstall air horn.
Measure distance from float bowl casting to float.
