Accelerator Pump
NOTE:
Accelerator pump setting should not be changed from original factory setting unless measurement shows a variation from specification. Do not attempt to bend pump lever unless absolutely necessary as it is made of hardened steel and extremely difficult to bend.

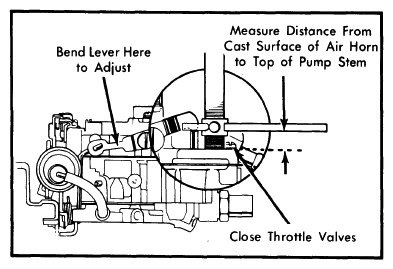

- Close throttle valves completely. Make sure fast idle speed screw is off fast idle cam. See Fig 1.
- Using a "T" scale, measure accelerator pump specified distance from cast surface of air horn to top of pump stem.
- To adjust, remove pump lever screw and washer. Remove pump lever by rotating lever and removing from pump rod. Secure lever in a vise and bend end of lever at small segment.
- Install pump lever and tighten screw. Recheck specified distance. Open and close throttle and check for freedom of movement.
