Home >> GMC >> 1981 >> Pickup C1500, 4.1L Eng VIN D, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Pulse Air Injection >> Trouble Shooting >> Failure Diagnosis >> Poor Driveability

Poor Driveability

Rubber hose deteriorated. Hose particles entering carburetor causing poor driveability. Clean carburetor, and remove particles from plenum chambers and connecting pipe.

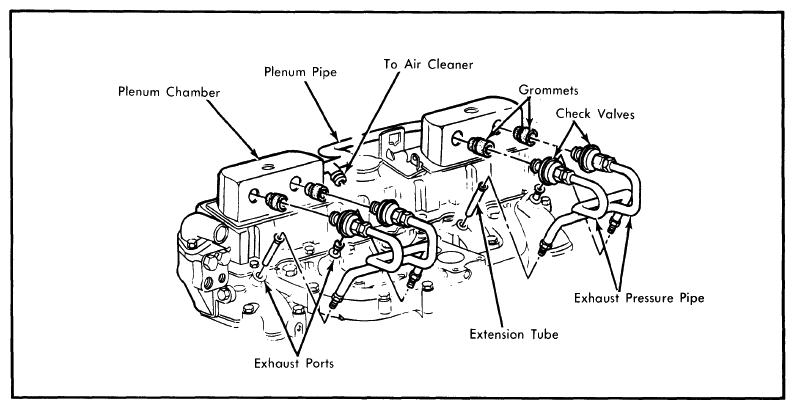

Fig 1: Pulse Air Injection Reactor (PAIR) System Components
G09337223Courtesy of GENERAL MOTORS COMPANY
