Catalyst Replacement (Jeep Only)

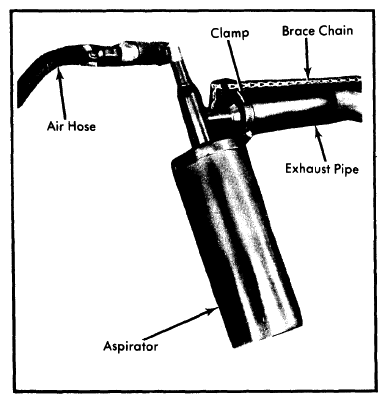

- Raise vehicle and attach vacuum aspirator device (J-25077-01 or equivalent) to exhaust pipe as shown in Fig 1.
Courtesy of GENERAL MOTORS COMPANY
- Apply enough air pressure (minimum 80 lbs.) to hold catalyst beads in place while converter fill plug is removed.

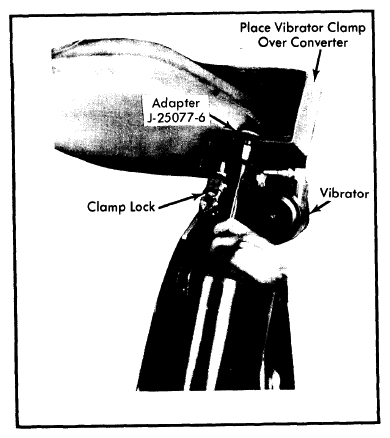

- Clamp on vibrator and catalyst receptacle as shown in Fig 2. Disconnect air supply from vacuum aspirator and attach it to vibrator unit.
- Using similar air pressure, vibrator should operate to empty the converter of the catalytic beads in about 10 minutes.
- When all catalyst material is removed, disconnect air supply and remove container from converter and discard beads.
- Fill container with approved replacement catalyst and install a fill tube fixture to the vibrator device.
- Attach air supply to both vibrator and aspirator. With container attached to fill tube, catalyst will begin to move into converter.
- When catalyst stops flowing, disconnect air supply to vibrator and note level of catalyst. It should be even with fill plug. Add more catalyst if required.
- Apply nickle-base, anti-seize compound to fill plug. Install plug and tighten to 60 ft. lbs. If equipped with press-type fill plug, install "bridge-and-bolt" type service plug and torque to 28 ft. lbs.
Courtesy of GENERAL MOTORS COMPANY
