Secondary Opening Linkage

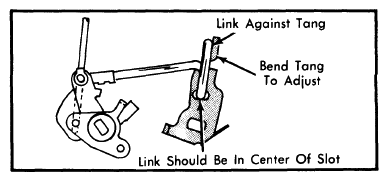

- Open primary throttle valves until secondary throttle link just contacts tang on secondary throttle lever. See Fig 1.
- Link should be centered in slot of secondary throttle lever. To adjust, bend tang on secondary throttle lever.
