Window Regulator Motor
- Disconnect battery ground cable and remove door trim panel, arm rest and pull assist brackets.
- Remove glass outer seal and glass run channel

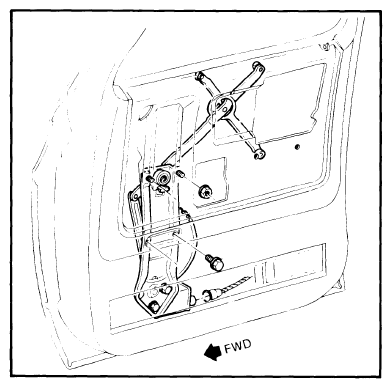

- Remove regulator attaching nuts and screws, pull glass to the limit, turn approximately 90° and remove glass from door.
- Disconnect harness from regulator and rotate motor regulator approximately 90° to access hole.
- Drill hole through sector gear and back plate and install a screw in the hole to lock the sector gear in position.CAUTION: Sector gear must be locked when removing regulator to preclude injury from the counterbalance spring.
Remove motor from regulator.
- To install, reverse removal procedures insuring that water proof tape is applied to seal all holes.
