GMC Motor Home: Caster: Rear

Caster is preset at factory, and no adjustment is provided. If not within limits, replace parts as necessary to correct.

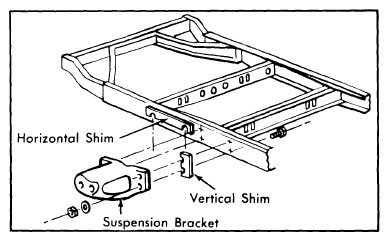

Fig 1: Shim Location

Courtesy of GENERAL MOTORS COMPANY

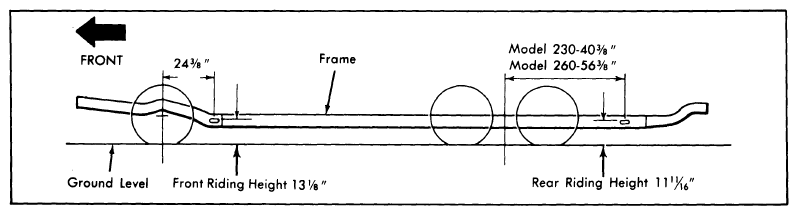

Fig 2: GMC Motor Home Riding Height

Courtesy of GENERAL MOTORS COMPANY
