Intake Manifold Tightening

Tighten bolts to 30 ft. lbs. in sequence shown in illustration below.

Fig 1: 307" & 350" Intake Manifold Tightening Sequence
G09325016Courtesy of GENERAL MOTORS COMPANY

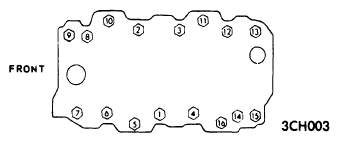

Fig 2: 454" Intake Manifold Tightening Sequence
G09325017Courtesy of GENERAL MOTORS COMPANY
