Tune-Up - V8: Distributor

Point Gap
  New .019"
  Used .016"
Cam Angle 28-32°
Breaker Arm Spring Tension 19-23 ozs.
Condenser Capacity .18-.23 mfd.

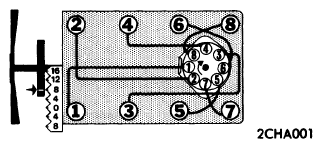

Fig 1: Firing Order & Timing Marks
G09324976Courtesy of GENERAL MOTORS COMPANY
