Manual Bleeding

Fill clutch master cylinder with clean brake fluid. Pump clutch pedal four or five times, and hold pedal at bottom of last stroke. Open bleeder screw on slave cylinder 1/2 turn until fluid and air stop flowing from hose. Close bleeder, then release pedal. Repeat procedure until all air is expelled from system.

TIGHTENING SPECIFICATIONS

Application Ft. Lbs.
Clutch Cover-to-Flywheel Bolts 35
Clutch Housing-to-Engine Block Bolts 30
Transmission-to-Clutch Housing 55

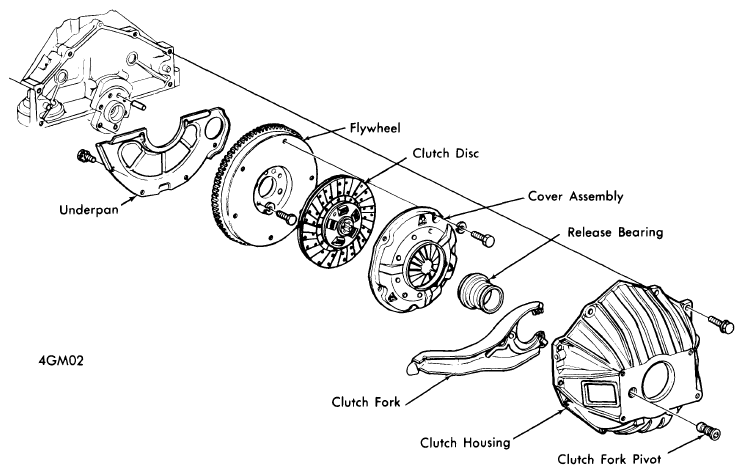

Fig 1: CLUTCH ASSEMBLY - EXPLODED VIEW (TYPICAL)
G09339739Courtesy of GENERAL MOTORS COMPANY
