Front Wheels

With driving flange, lock nut, and lock washer removed from hub, rotate wheel and tighten wheel bearing adjusting nut until wheel just begins to bind.

CAUTION: Do not tighten to over 50 ft. lbs. to prevent damage to wheel bearings.  Back off nut 1/6 turn, and make sure wheel rotates freely without sideways shake. Replace lock washer, and lock nut, then install driving flange.

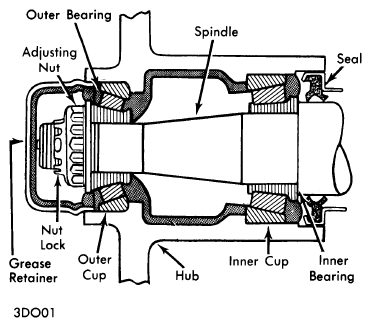

Fig 1: FRONT WHEEL BEARINGS
G09335648Courtesy of NOT AVAILABLE
