Steering Column: Installation

  1. To install, reverse the removal procedure.

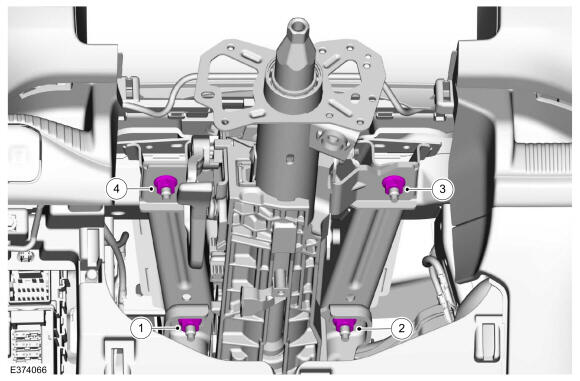

  2. Torque the steering column retainers following the sequence shown.

    Torque

    : 15 Nm

    GFD853143Courtesy of FORD MOTOR COMPANY
  3. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering .
