Hands-Free Liftgate Actuation Module: Removal

WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

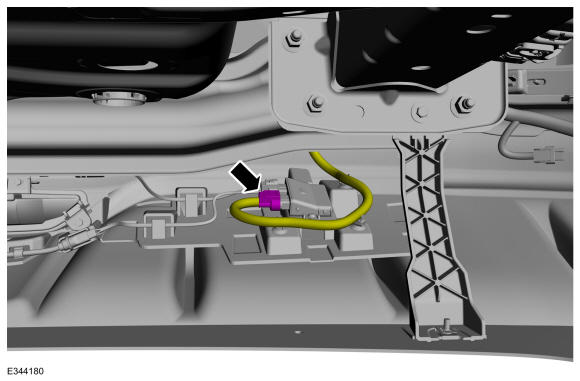

Disconnect the hands-free liftgate actuation module electrical connector.

Courtesy of FORD MOTOR COMPANY

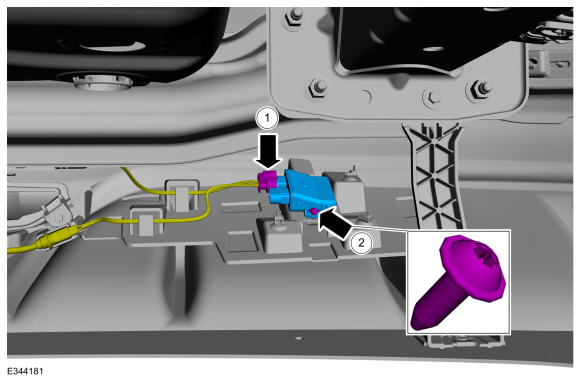

- Remove the electrical connector.
- Remove the screw and the hands-free liftgate actuation module.
  Torque

  : 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
