Liftgate Alignment: Adjustment

WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.

All alignments

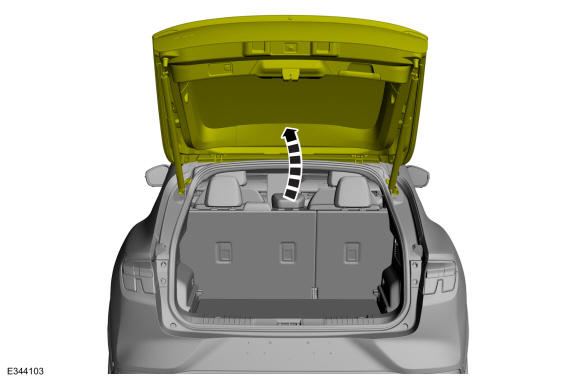

Open the liftgate.

Courtesy of FORD MOTOR COMPANY

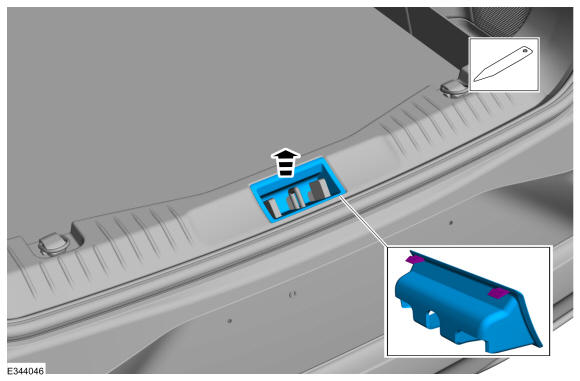

Release the tabs and remove the liftgate striker cover.

Courtesy of FORD MOTOR COMPANY

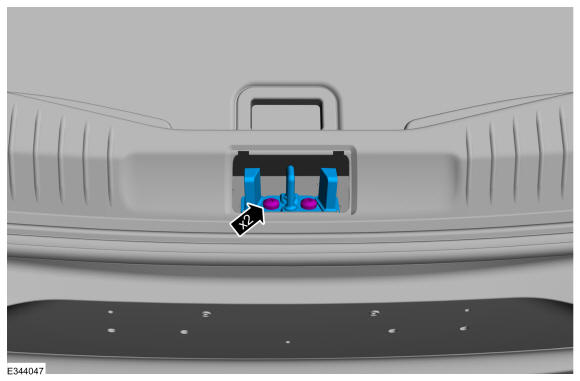

Remove the fasteners and the liftgate striker.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Liftgate left and right, up and down alignment

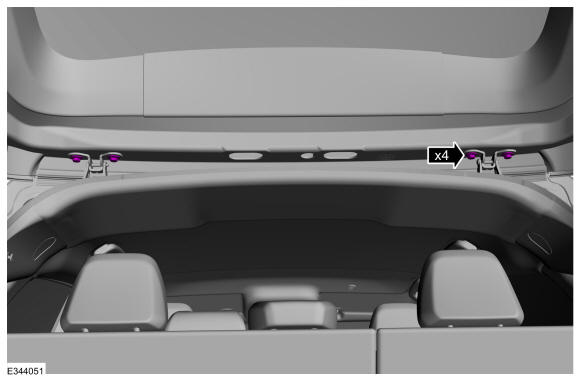

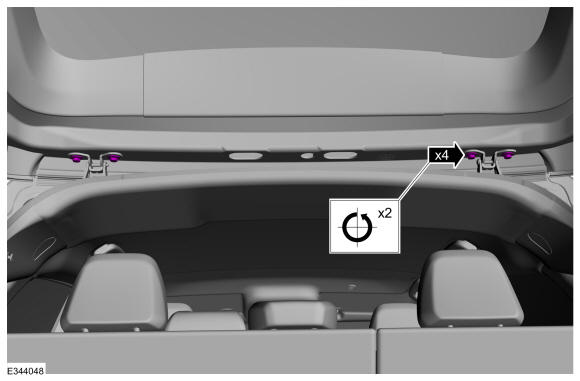

Loosen the bolts. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

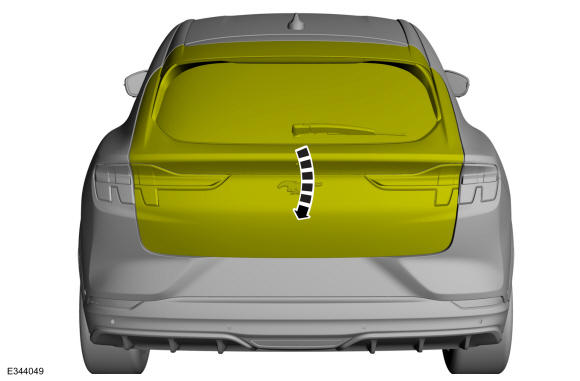

Carefully close the liftgate.

Courtesy of FORD MOTOR COMPANY

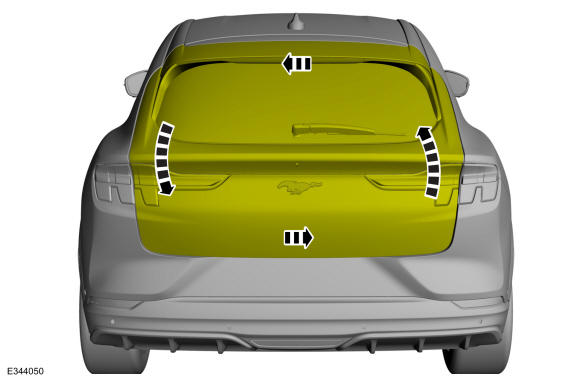

Adjust the liftgate as required.

Courtesy of FORD MOTOR COMPANY
Carefully open the liftgate.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

Liftgate in and out alignment

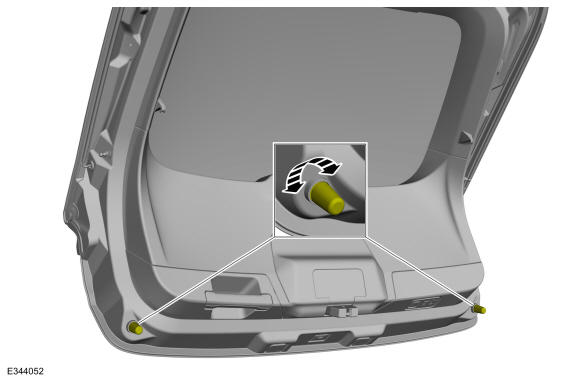

Adjust the stops.

Courtesy of FORD MOTOR COMPANY
On both sides. Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .

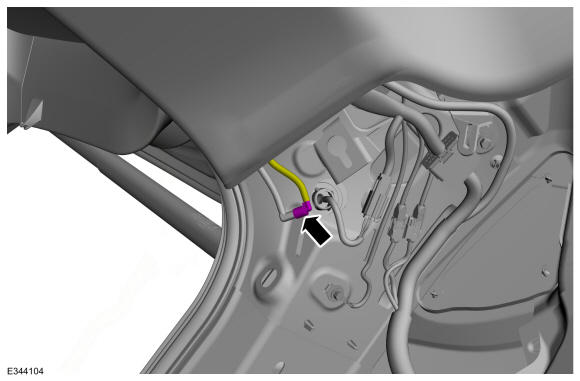

Detach the rear wiper washer hose coupling.

Courtesy of FORD MOTOR COMPANY

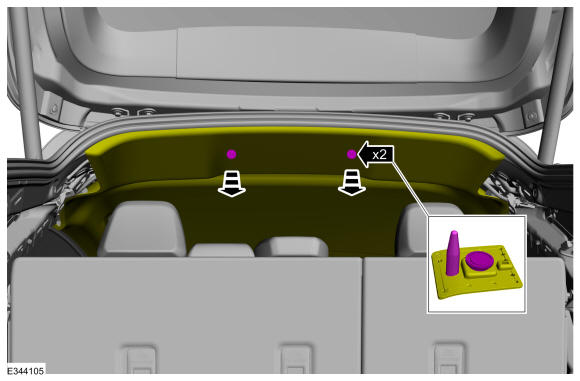

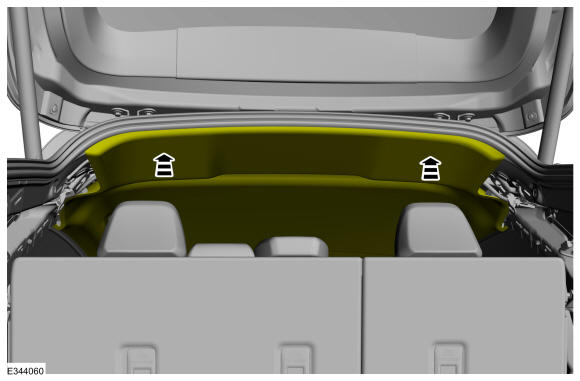

Release the clips and lower the rear headliner.

Courtesy of FORD MOTOR COMPANY

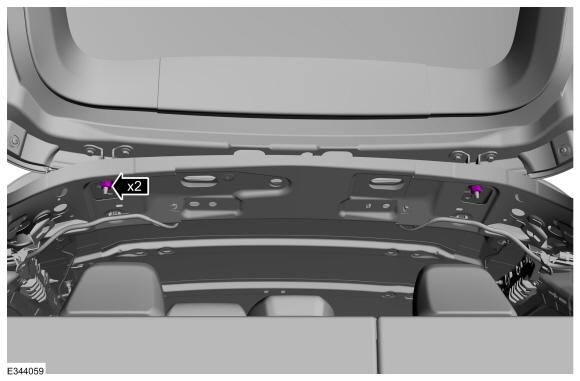

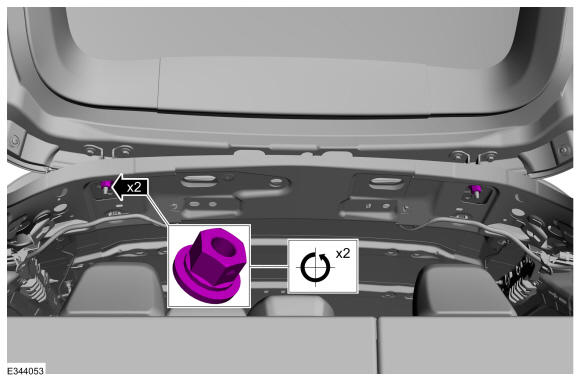

Loosen the nuts. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

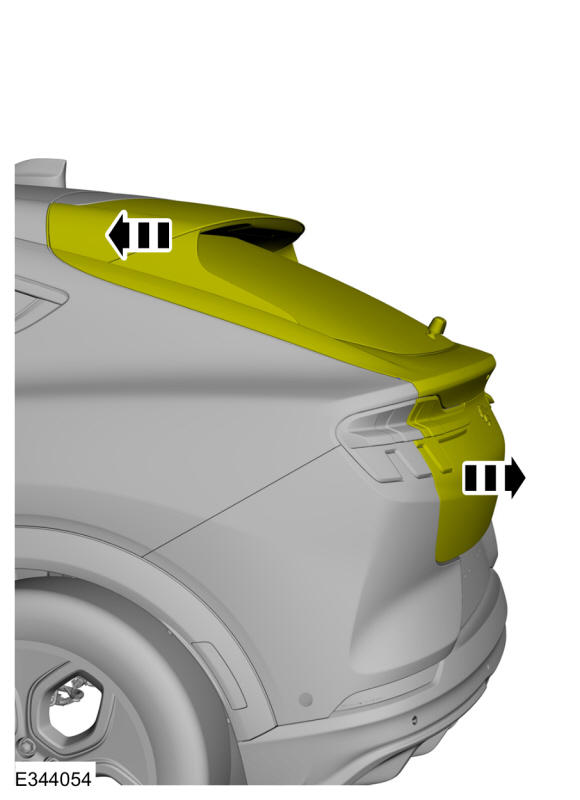

Adjust the liftgate as required.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts and nuts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Position back the rear headliner.

Courtesy of FORD MOTOR COMPANY
On both sides. Install the C-pillar trim panel. Refer to: C-Pillar Trim Panel .
All alignments

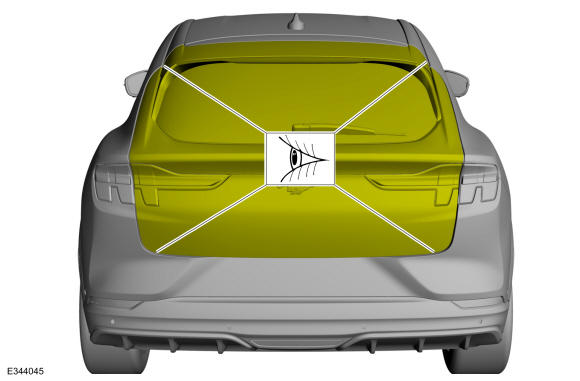

Inspect the body-to-liftgate door dimensions.

Courtesy of FORD MOTOR COMPANY
Install the positioned aside and removed components.
