Hood Alignment: Inspection
WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.

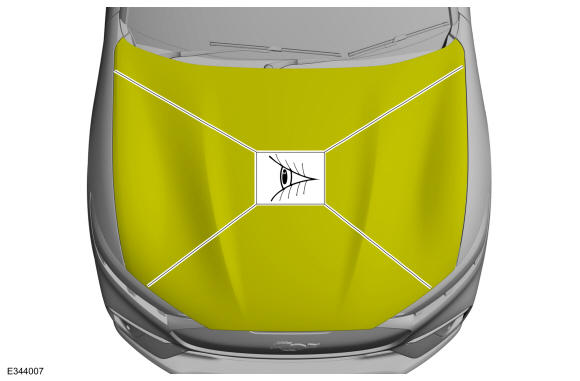

- Inspect the hood-to-body dimensions.
All alignments
- Open the hood.

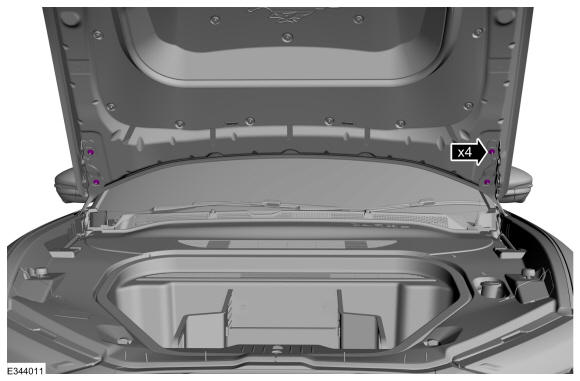

- Remove the hood latch. Refer to: Hood Latch
.
Hood fore and aft, left and right alignments

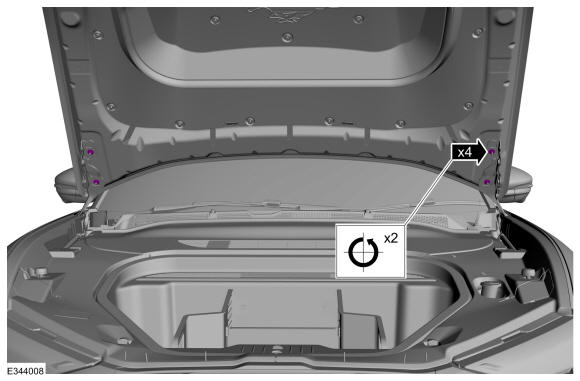

- Loosen the nuts enough to permit movement of the hood. Loosen: : 2 turn(s)

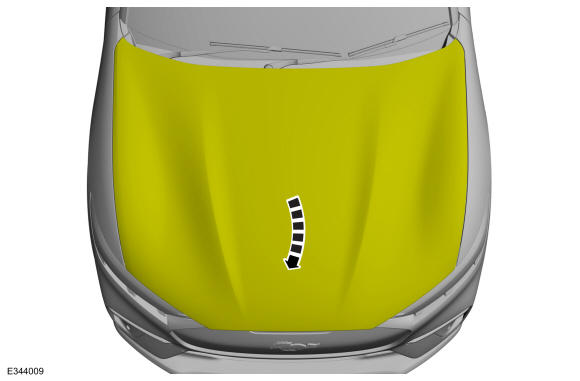

- Carefully close the hood.

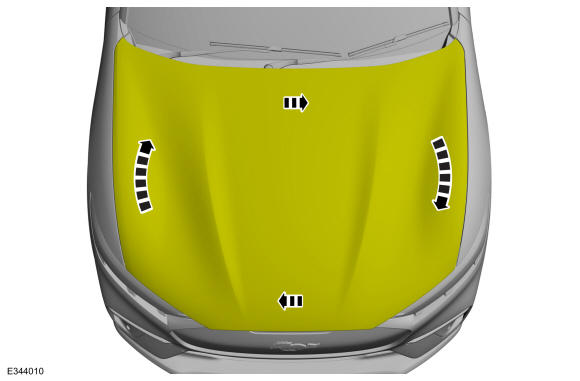

- Adjust the hood as required.

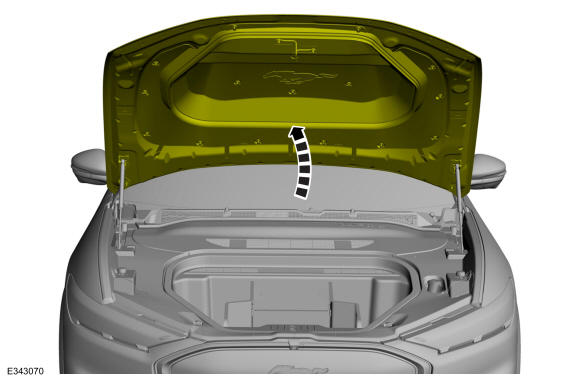

- Carefully open the hood.
- Tighten the nuts.
Torque
: 97 lb.in (11 Nm)

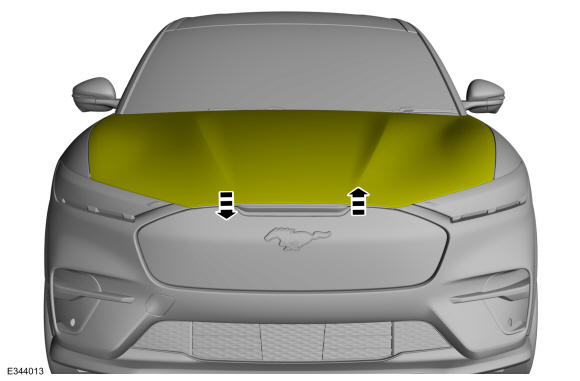

Hood front up and down alignments

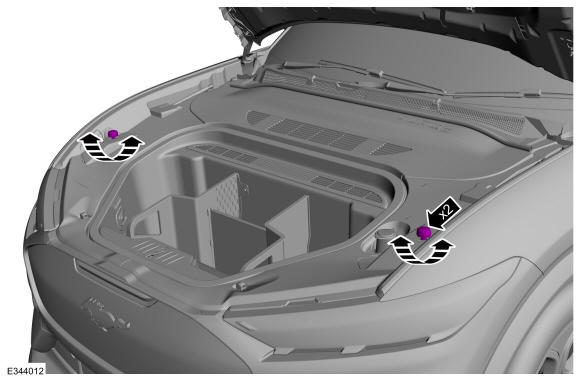

- Adjust the bump stop rubbers.
- Carefully close the hood.
- Adjust the hood as required.
All alignments
- Install the hood latch. Refer to: Hood Latch .
- Inspect the body-to-hood dimensions.
