Front Door Alignment: Adjustment

WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.

All alignments

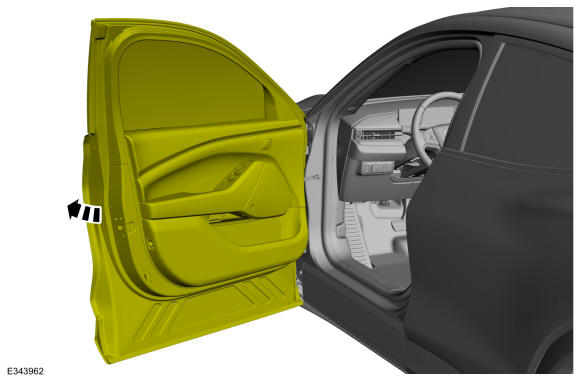

Open the door.

Courtesy of FORD MOTOR COMPANY

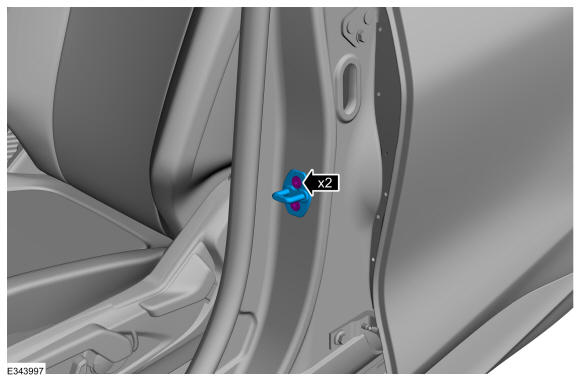

Remove the bolts and the striker assembly.

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

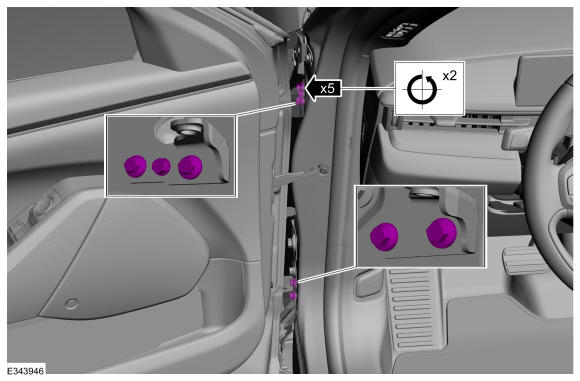

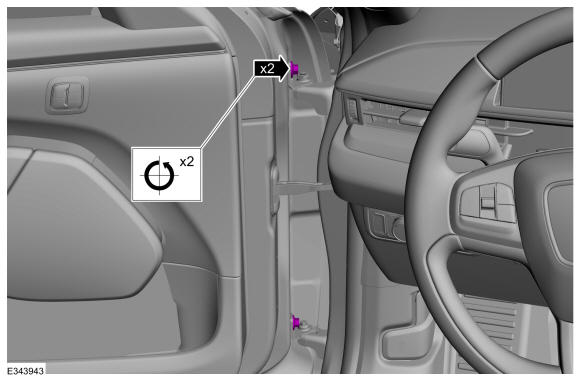

Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

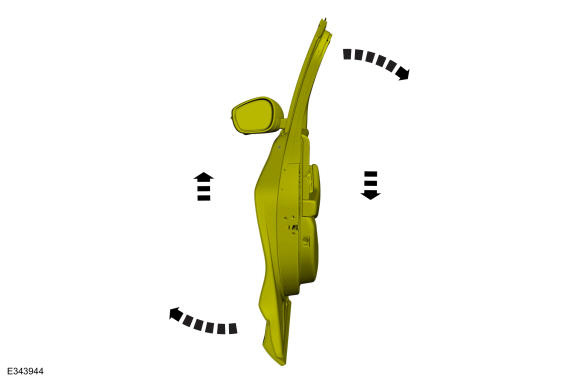

Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment
Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

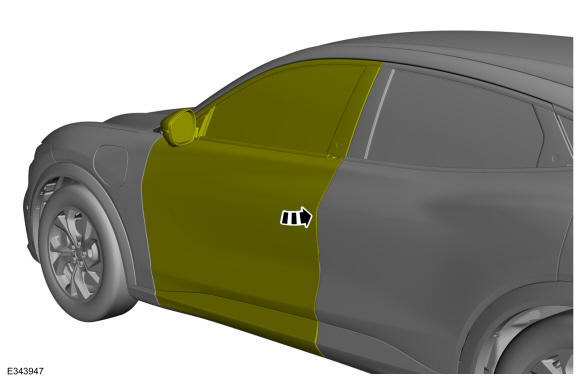

Carefully close the door.

Courtesy of FORD MOTOR COMPANY

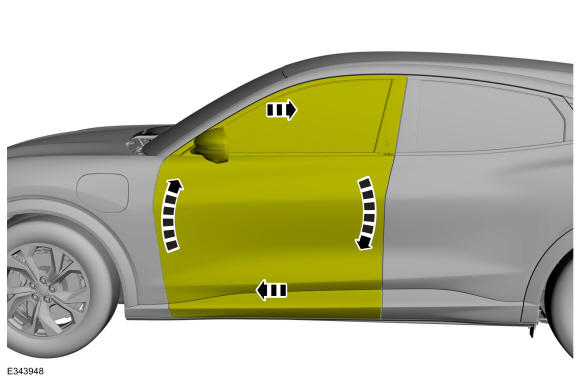

Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Carefully open the door.

Courtesy of FORD MOTOR COMPANY

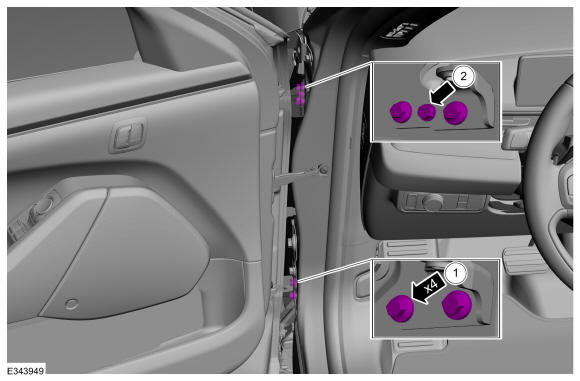

Tighten the bolts.
Torque

: 1.: 22 lb.ft (30 Nm) 2.: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

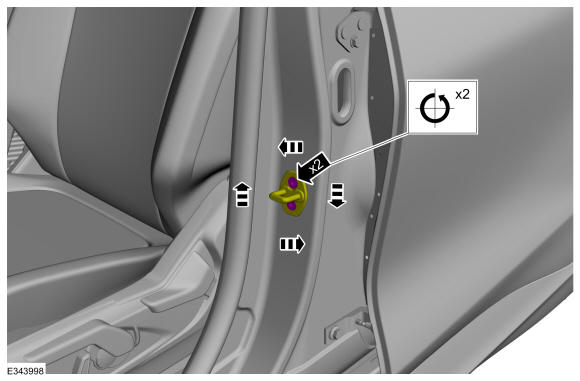

Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

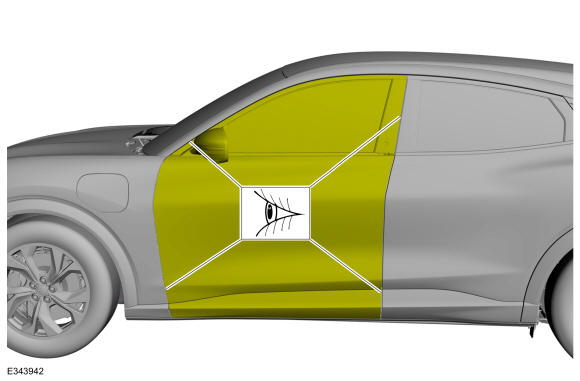

Inspect the body-to-front door dimensions.

Courtesy of FORD MOTOR COMPANY
