Side Obstacle Detection Control Module D (SODCMD): Removal
WARNING: This page is about a different car, the 2023 Ford Mustang Mach-E. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front bumper cover. Refer to: Front Bumper Cover .
- Remove the horn. Refer to: Horn .

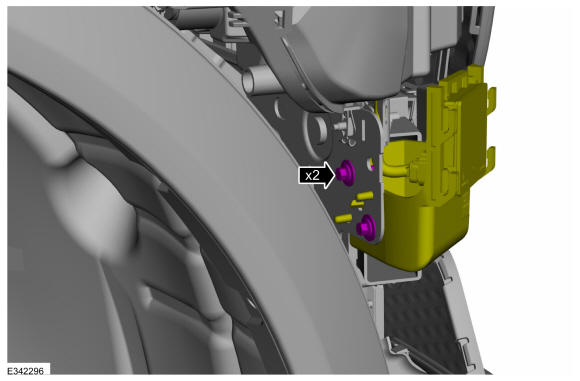

- Remove the screws and position the SODCMD bracket aside.
Torque: 44 lb.in (5 Nm)
-

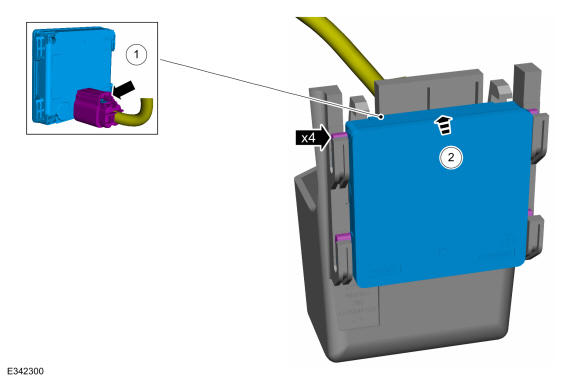

- Disconnect the electrical connector.
- Release the tabs and remove the SODCMD.
